RS PRO SPDT, On-Off-On Rocker Switch Panel Mount, Клавишный переключатель

RS PRO Single Pole Double Throw Switch, On-Off-On Rocker Switch, Panel Mounting

This RS PRO rocker switch mounts onto a control panel to turn systems or machinery on and off. It's commonly found in industrial control cabinets or power supplies for convenient and easy manual switching.

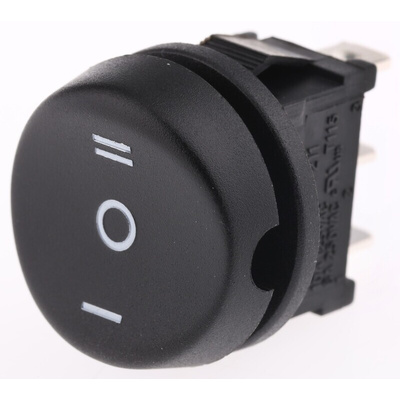

The single and double dash signs on the unit allow you to easily see whether you are switching it on or off. Its snap-in mounting terminals are simple to use and allow for quick wiring and installation. A strong nylon housing gives the switch a long service life, so it won't need to be frequently replaced. Its ergonomic design is user-friendly, which makes it easy to operate.
Use a rocker switch like this with medical equipment and industrial machinery. It meets UL (Underwriters' Laboratories) 94V-2 flammability standards, so it's flame-retardant and doesn't pose a fire hazard.

Features and Benefits

• Voltage rating of 125 V, 250 V AC
• Contact current rating of 10 A at 125 V AC
• Black actuator colour
• Round actuator shape
• Nylon case material
• Single Pole Double Throw (SPDT) contact configuration
• Silver-plated brass contact material
• Contact resistance of 50 mΩ
• Not illuminated
• Operating temperature range of -20°C to +85°C
• Panel mounting
• Panel cut out diameter of 22.5 mm
• Panel cut out height of 13 mm
• Panel cut out width of 19.8 mm
• On-Off-On switch operation

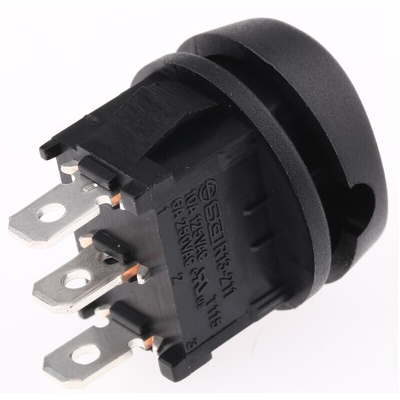

• Quick connect terminal type
