RS PRO Illuminated SPST, On-Off Rocker Switch Panel Mount, Клавишный переключатель

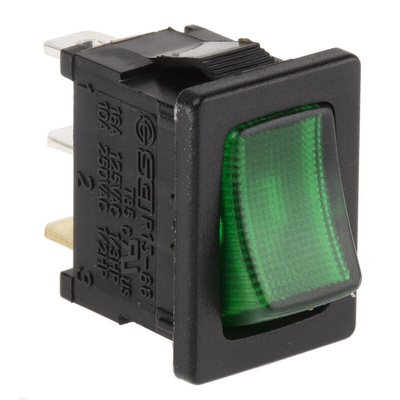

RS PRO Miniature SPST Latching Illuminated Green Rocker Switch 250V

A robust and reliable illuminated latching rocker switch with a Single Pole Single Throw (SPST) configuration designed for an On-Off action. Constructed with a flame retardant and impact resistant Nylon 66 case with a tough Polycarbonate button for a rocker switch fit for industrial and commercial environments.
The RS PRO illuminated rocker switch features a black body with green illumination when in the on position and quick connect contacts for easy panel mounting in a 19.2 x 13mm panel cut out
The green on off switch features Silver contacts avoiding the risk of contact oxidisation and maintaining secure and reliable conductivity throughout its mechanical life.
A hard wearing and reliable rocker switch fit for a wide range of applications such as domestic appliances including coffee machines, and kettles, showers, white goods such as washing machines and dryers, air conditioning units, power supplies and machine guarding.

Features and Benefits

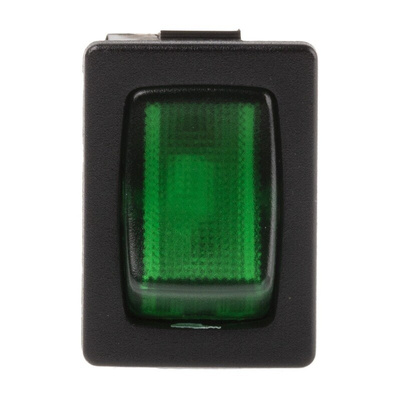

• Green illuminated rocker switch


• SPST switch configuration


• Nylon frame construction to UL 94V-2


• Dimensions of 21 x 17.8 x 15mm


• Secure snap-in panel clips at top and bottom of the housing


• Panel mount

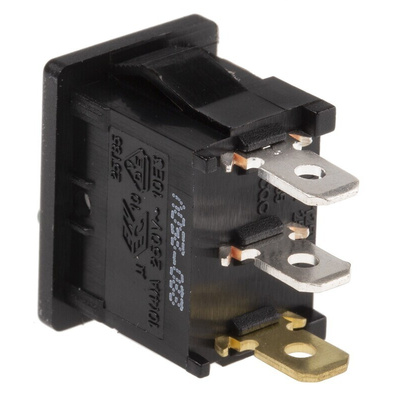

• Silver plated Brass terminals

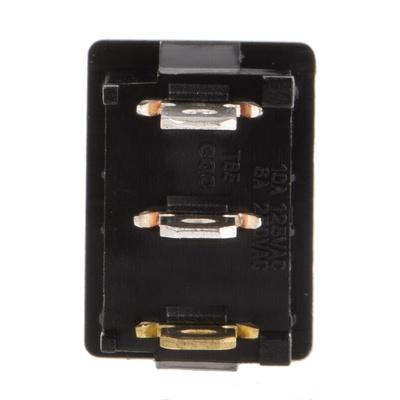

• 4.8 x 0.8 mm quick connect terminals


• 125 V (10A)/ 240 V ac (6A) mains rated


• Operating temperature range - 20° C to 85° C


• 19.2 x 13.00 mm panel cut out
