RS PRO Toggle Switch, Panel Mount, On-Off, SPST, Tab Terminal, 250V, Тумблер

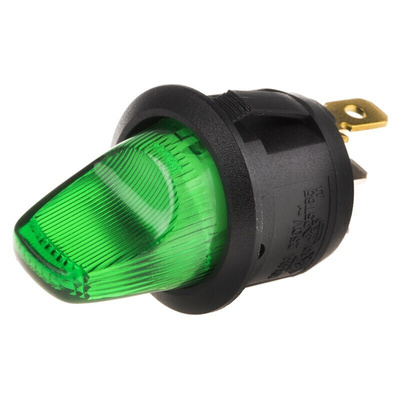

RS PRO SPST Panel Mount Illuminated Green Paddle Toggle Switch

A high-quality paddle toggle switch with a Single Pole Single Throw (SPST) configuration designed for an On-Off action. Constructed with a flame retardant and impact resistant Nylon 66 case to UL94V-2 with a tough Polycarbonate button for a paddle switch fit for industrial and commercial environments.
The RS PRO illuminated toggle switch features a black body with a green illuminated paddle when in the on position and is intended for panel mounting into a 20.2mm diameter cut out using the snap in quick connectors for easy installation. Designed in a latching action which means that once it is set to a position it stays in position and built with 4.8 x 0.8mm quick connect terminals for easy installation.
The panel mount toggle switch is sealed for protection against moisture and water, capable of operating at temperatures of up to 85° C and features compact dimensions of 23 x 40mm including the toggle switch. A hardwearing toggle switch ideal for busy panels.

Featires and Benefits

• Toggle switch


• Green illumination


• On-Off positions


• Panel mount


• 4.8 x 0.8 mm quick connect terminals


• 125 V (16A)/ 240 V ac (10A) mains rated


• Make and break cycle


• Contact resistance of 50mΩ max


• Operating temperature of -20°C to 85°C


• Nylon 66 case UL94V-2


• Minimum insulation resistance of 500MΩ


• Minimum dielectric strength of 1500 Vrms

Standards and Approvals:Standards and Approvals: CQC, CSA, ENEC, UL, VDE, RoHS compliant
