3RW4027-1BB14, Siemens Soft Starter, Soft Start, 15 kW, 480 V ac, 3 Phase, IP20, Устройство плавного пуска

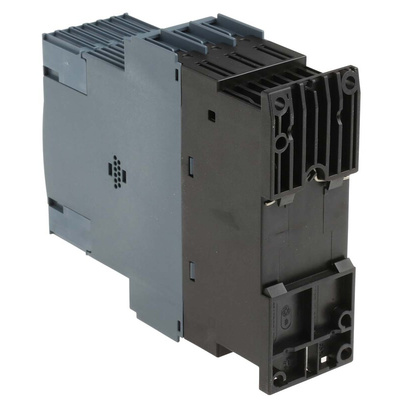

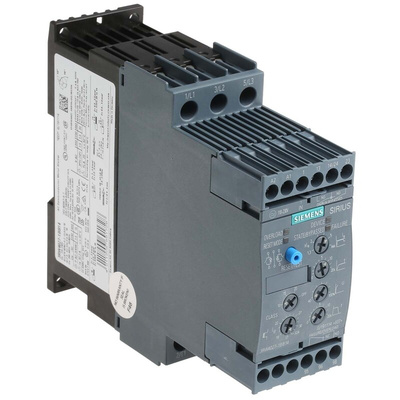

Siemens Soft Starter, 15kW, 480V AC - 3RW40 Series - 3RW4027-1BB14

This soft starter from Siemens offers an efficient and safe way to soft-start and ramp down 3-phase asynchronous motors. It's fitted with an integrated bypass to divert the current through the soft starter's switching circuits during operation, which keeps heat build-up in your control cabinet to a minimum. The unit's intelligent monitoring functions help to protect the motor from overload, and you can also set a maximum current limit during startup.

• Compact dimensions of 125 (D) x 154 (L) x 45mm (W) for space-efficient systems
• Integrated remote reset to deal with faults quickly from a distance
• Power rating of 15kW and voltage rating of 480V AC offer versatility of use
• IP20 (ingress protection) rating means it's touch-proof and resistant to dust

What's an asynchronous motor?

Also sometimes called an induction motor, an asynchronous motor uses electromagnetic induction from the magnetic field of the stator winding to supply the electric current to the rotor, meaning it can work without electrical connections to the rotor.

What's a soft starter?

A soft starter is a device used to temporarily reduce the current surge, load and torque of a motor during start-up. This reduces mechanical stress on the motor and shaft.

Soft Starter 3RW40 - Instructions

3RW4027-1BB14 Datasheet

Catalogue - Soft Starters and Solid-State Switching Devices
