RS PRO Brushed Geared DC Geared Motor, 41.3 W, 12 V dc, 29 Ncm, 1425 rpm, 8mm Shaft Diameter, Двигатель

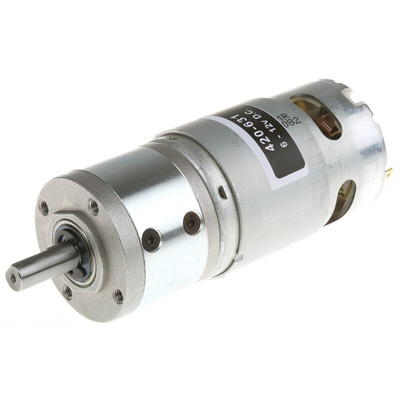

RS PRO Brushed Geared DC Geared Motor, 41.3 W, 12 V, 2.9 Ncm, 1425 rpm, 8 mm Shaft Diameter

This brushed DC geared motor from RS PRO lets you run smaller tools and appliances efficiently. It works by quickly converting DC electrical energy into mechanical energy. This type of component is useful across a range of industrial settings, from commercial printing to laser and optics production.


The motor is easy to install and is ready to use as soon as you've wired it into your circuit. It's very quiet to run and emits minimal vibration, so you can work undisturbed. The robust iron core is extremely hardwearing and can handle being knocked or scraped in challenging workplaces, so you're assured a long lifetime.


Brushed motors of this type are typically found in cost-sensitive applications that require a simple solution with speed and direction control. It's ideally suited for use with camera lenses, 3D printers and precision positioning tools.

Features and Benefits

• Iron core construction


• Current rating of 5.28 A


• Brushed geared DC motor type


• Planetary gear head type


• Length of 98.5 mm


• Width of 44.6 mm


• Shaft diameter of 8 mm


• Maximum output torque of 29 Nm (Newton metres)


• Output speed of 1425 rpm (revolutions per minute)


• Power rating of 41.3 W


• Supply voltage of 12 V
