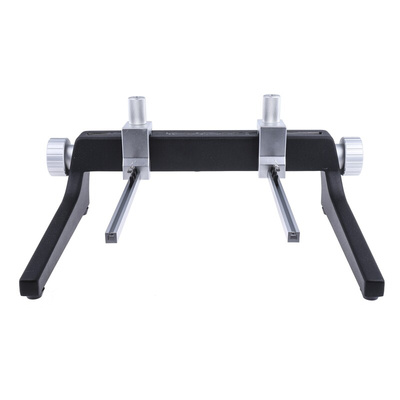

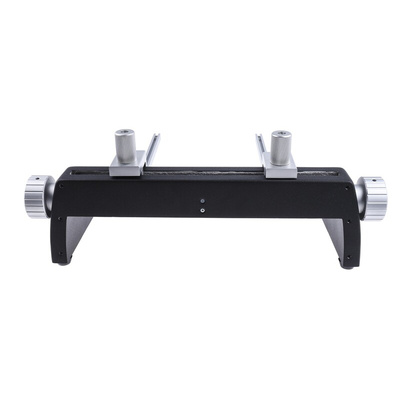

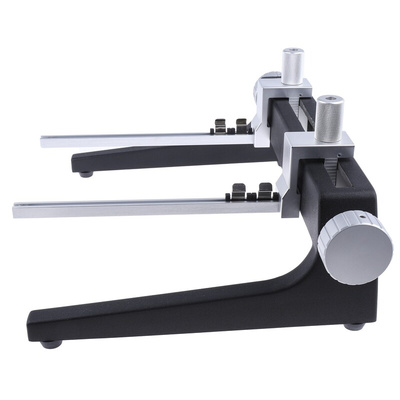

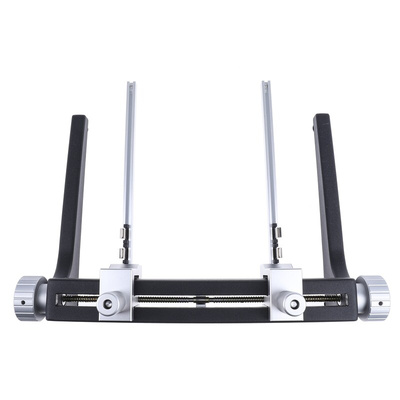

BH-100, Metcal Soldering Accessory PCB Work Holder, for use with PCT-100 Focused Convection Pre-heater

PCT-100 Focused Convection Pre-heater & Circuit Board Holder

The PCT-100 is designed to provide extra heat capacity for demanding applications such as lead free, multi-layered boards and assemblies with large ground plates by directly targeting the underside of the PCB. This direct targeting provides a thermal boost for processes such as soldering and hot air rework and leads to an substantial improvement in process time.

Quick ramp to temperature, increased productivity
Controlled cool-down eliminates thermal shock to PCB’s and components
Input voltage: 230V
Heater Rating: 450W
Airflow: 10.2CFM
Control Temperature: Variable up to 300°C
Weight: 1.6kg
Dimensions: 205(L) x 155(W) x 65(H)mm
ESD Safe

Approvals

cTUVus, CE

Heating Plates - OKI/ Metcal

PCT-100 Focused Convection Pre-Heater Data Sheet

57 Page ESD Control Selection Guide
