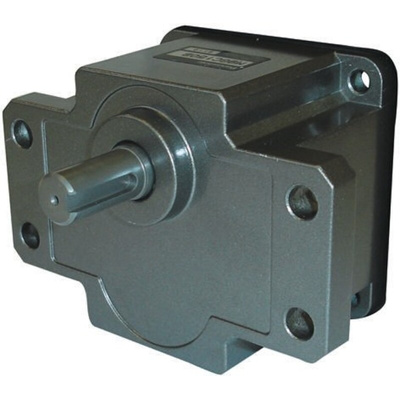

MY9G5B, Panasonic Spur Gearbox, 5:1 Gear Ratio, 2.25 Nm Maximum Torque, 275rpm Maximum Speed, Редуктор

60W 90x90mm Panasonic 3 Series Flange Mount Gearboxes

These gearheads are designed to fit Panasonic 3 Series 60W (and 90W) AC single and three phase motors. The flange offers improved mounting that is often required for the higher powered motors.

Suitable for use with the following Panasonic 3 Series 60W motors: 424-162 and 424-156 (single phase), 424-015 and 424-005 (three phase)

Note

Panasonic 3 Series 60W and 90W Gearboxes can only be used with Panasonic 3 Series 60W and 90W Motors.

Panasonic 3 Series Motors and Gearboxes

Panasonic 3 Series Motors, with identical mounting dimensions as the G Series, replace and offer the following benefits over G Series Motors:

Grease-lubricated gearboxes
10000hr life
Quiet operation
Class B motor insulation

A number of additional design changes include:

A number of gearboxes with shorter gearheads
Different motor shafts (non-interchangeable with G Series gearboxes)

Note

Panasonic 3 Series Motors can only be used with Panasonic 3 Series Gearboxes.

Approvals

UL, CE and CCC
