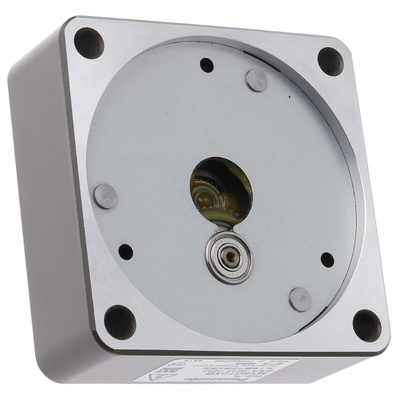

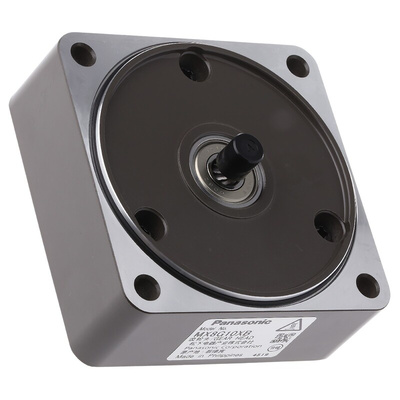

MX8G10XB, Panasonic Spur Gearbox, 10:1 Gear Ratio, Редуктор

25W 80x80mm Panasonic 3 Series Intermediate Gearboxes

Fitted between a Pansonic 3 Series motor and a gearhead of the same frame size
Provides a further 10:1 speed reduction for a motor-gearhead combination
The output shaft of the intermediate gearhead has a gearscrew to allow it to engage and drive the attached gearhead

Note

Panasonic 3 Series 25W Gearboxes can only be used with Panasonic 3 Series 25W Motors.

Panasonic 3 Series Motors and Gearboxes

Panasonic 3 Series Motors, with identical mounting dimensions as the G Series, replace and offer the following benefits over G Series Motors:

Grease-lubricated gearboxes
10000hr life
Quiet operation
Class B motor insulation

A number of additional design changes include:

A number of gearboxes with shorter gearheads
Different motor shafts (non-interchangeable with G Series gearboxes)

Note

Panasonic 3 Series Motors can only be used with Panasonic 3 Series Gearboxes.

Approvals

UL, CE and CCC
