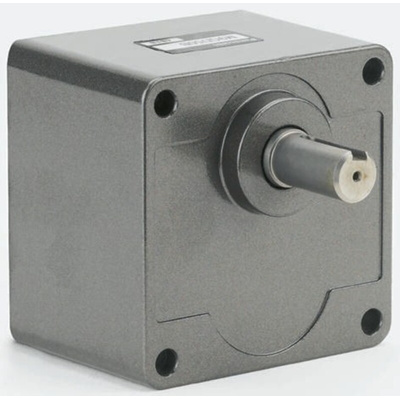

MX9G20B, Panasonic Spur Gearbox, 20:1 Gear Ratio, 4.51 Nm Maximum Torque, 67.5rpm Maximum Speed, Редуктор

40W 90x90mm Panasonic 3 Series Gearboxes

Note

Panasonic 3 Series 40W Gearboxes can only be used with Panasonic 3 Series 40W Motors.

Panasonic 3 Series Motors and Gearboxes

Panasonic 3 Series Motors, with identical mounting dimensions as the G Series, replace and offer the following benefits over G Series Motors:

Grease-lubricated gearboxes
10000hr life
Quiet operation
Class B motor insulation

A number of additional design changes include:

A number of gearboxes with shorter gearheads
Different motor shafts (non-interchangeable with G Series gearboxes)

Note

Panasonic 3 Series Motors can only be used with Panasonic 3 Series Gearboxes.

Approvals

UL, CE and CCC
