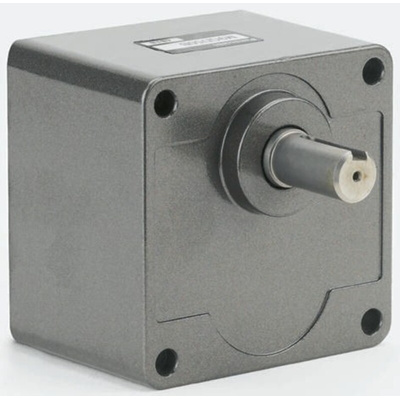

MX6G3BA, Panasonic Spur Gearbox, 3:1 Gear Ratio, 0.098 Nm Maximum Torque, 416.66rpm Maximum Speed, Редуктор

6W 60x60mm Panasonic 3 Series Gearboxes

Note

Panasonic 3 Series 6W Gearboxes can only be used with Panasonic 3 Series 6W Motors.

Panasonic 3 Series Motors and Gearboxes

Panasonic 3 Series Motors, with identical mounting dimensions as the G Series, replace and offer the following benefits over G Series Motors:

Grease-lubricated gearboxes
10000hr life
Quiet operation
Class B motor insulation

A number of additional design changes include:

A number of gearboxes with shorter gearheads
Different motor shafts (non-interchangeable with G Series gearboxes)

Note

Panasonic 3 Series Motors can only be used with Panasonic 3 Series Gearboxes.

Approvals

UL, CE and CCC
