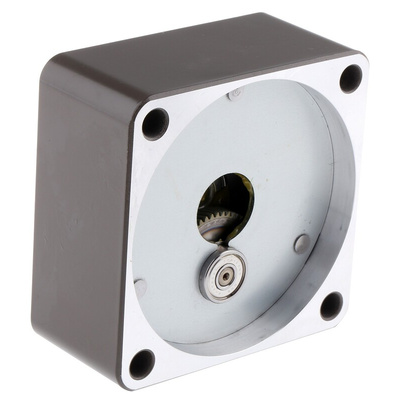

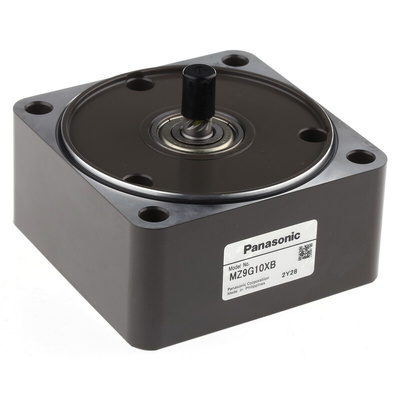

MZ9G10XB, Panasonic Spur Gearbox, 10:1 Gear Ratio, Редуктор

60W or 90W Motor 90x90mm Panasonic 3 Series Intermediate Gearbox

Fits between a Panasonic 3 Series 60W or 90W motor and gearhead of the same frame size
Provides a further 10:1 speed reduction for a motor-gearhead combination
The output shaft of the intermediate gearhead has a gearscrew to allow it to engage and drive the attached gearhead

Note

Panasonic 3 Series 60W and 90W Gearboxes can only be used with Panasonic 3 Series 60W and 90W Motors.

Panasonic 3 Series Motors and Gearboxes

Panasonic 3 Series Motors, with identical mounting dimensions as the G Series, replace and offer the following benefits over G Series Motors:

Grease-lubricated gearboxes
10000hr life
Quiet operation
Class B motor insulation

A number of additional design changes include:

A number of gearboxes with shorter gearheads
Different motor shafts (non-interchangeable with G Series gearboxes)

Note

Panasonic 3 Series Motors can only be used with Panasonic 3 Series Gearboxes.

Approvals

UL, CE and CCC
