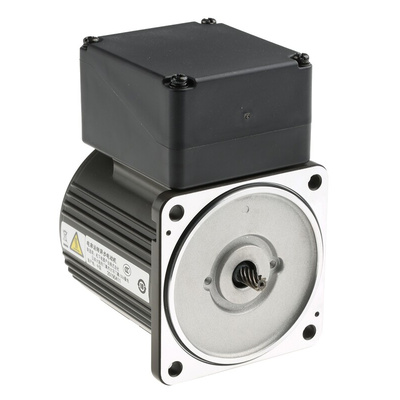

M81X25GK4GGA, Panasonic M81 Reversible Induction AC Motor, 25 W, 1 Phase, 4 Pole, 230 V, Двигатель

25W 80x80mm Panasonic 3 Series Motors

Can easily be fitted together with Panasonic 3 Series 25W gearheads and used in a host of industrial applications
The user can select a motor-gearhead combination which best fulfils their needs
Typical applications include conveyor systems, machinery, door openers

Note

Panasonic 3 Series 25W Motors can only be used with Panasonic 3 Series 25W Gearboxes.

Panasonic 3 Series Motors and Gearboxes

Panasonic 3 Series Motors, with identical mounting dimensions as the G Series, replace and offer the following benefits over G Series Motors:

Grease-lubricated gearboxes
10000hr life
Quiet operation
Class B motor insulation

A number of additional design changes include:

A number of gearboxes with shorter gearheads
Different motor shafts (non-interchangeable with G Series gearboxes)

Note

Panasonic 3 Series Motors can only be used with Panasonic 3 Series Gearboxes.

Approvals

UL, CE and CCC

Motor Wiring Diagram

Panasonic Series 3 Motors and Gears

Panasoinc 3-Series Manual
