RS PRO 1.5mm Pitch M10 HSS piece Die Nut, Калибровочная плашка

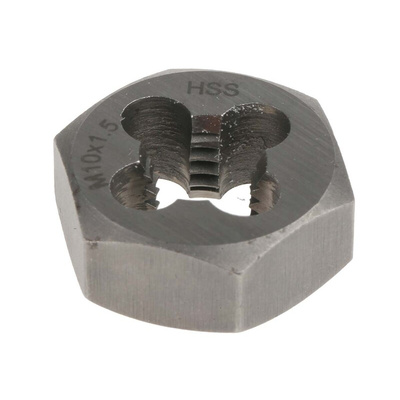

RS PRO 1.5 mm Pitch M10 HSS Die Nut

Breathe new life into worn or damaged threads with this die nut from RS PRO. It's made from high-speed steel (HSS) that allows it to cut cleanly through the damaged thread. It then cleans it up and reclaims it.
This die nut can be used to reclaim threads with a size of M10 and a pitch of 1.5 mm. It measures 0.92 inches (23.4 mm) in diameter and is 0.375 inches (9.5 mm) thick.
The die nut meets the requirements of US (ANSI/ESD S20.20:2014) and European (BS EN 61340-5-1:2007) electrostatic control standards, meaning that it won't damage equipment via electrostatic discharge. Die nuts are commonly used to reclaim threads in individual parts for maintenance, as well as the threads of pipes and those found in hydraulic installations.

Features and Benefits

• Diameter across flats of 0.92 in (23.4 mm)
• Made of high-speed steel (HSS)
• Single piece
• Pitch of 1.5 mm
• Thickness of 0.375 in (9.5 mm)
• Thread size of M10

RS Pro Datasheet
