MEAN WELL Switching Power Supply, RPT-160C, 5 V dc, ±15 V dc, 1A, 99W, Triple Output, 127 → 370 V dc, 90, Источник питания

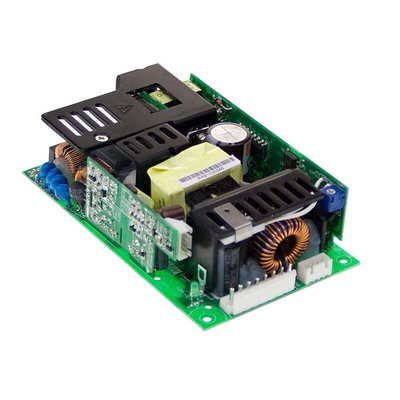

RPT-160 Series, Triple Output Power Supply 3x5inch

Miniature size 3x5 inch, high power density
High efficiency, long life and high reliability
Universal input voltage 90-264Vac, 127-370Vdc
Energy saving power supply
No load power consumption <0.5W
Medical safety approved
Low leakage current <200μA
5V 1A standby output
High operating temperature up to 70°C
Power good and fail safe signal output
Adjustable output voltage (4.75 to 5.5V main output)
Power factor correction to EN 61000-3-2
EMC compliance to EN55011, EN 55022 Class B
Short circuit, overload over-voltage and over-temperature protection
Extra peak load rating with 20.5CFM forced air cooling

Note

De-rating above 40°C for free air convection, 50°C for forced air cooling with 20.5CFM. Output current and power stated for free air convection.
MTBF to MIL-HDBK-217F (25°C).

Standards

EN 60601-1, UL 60601-1

Approvals

TUV, CB, UL recognised component for Canada & US

RPT,RPTG-160 Series specification sheet

Declaration Of Conformity
