RS PRO 34-Contact Interface Module, IDC Connector, DIN Rail Mount, 1A, Модуль

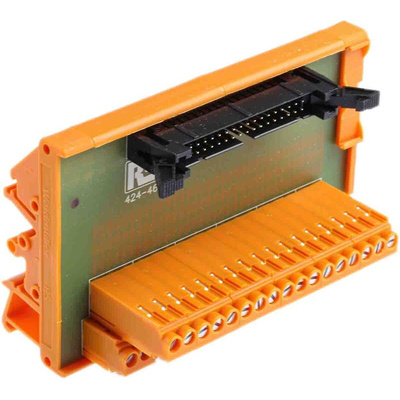

RS PRO 34 Pole IDC Connector Interface Module, DIN Rail Mount

This RS PRO interface module links electronic devices to electrical control systems, allowing them to perform tasks such as signal transmission and distribution. The module may be installed on a DIN rail for simple installation. It's also straightforward to use, as its "plug and play" interface lets you control and direct your gadgets with ease.


The screw termination ensures a strong connection between your devices and the module. The polyamide (PA) material of the module makes it extremely robust and provides exceptional thermal resistance for operation at high temperatures. The gold-plated contacts provide excellent electrical conductivity as well as resistance to rust and corrosion, ensuring a secure and long-lasting connection.


The small size of this interface module makes it an excellent choice for use in tight spaces. This sort of device is typically found in factories and manufacturing facilities.

Features and Benefits

• Cable cross-sectional area (CSA) of 4 mm²


• IDC (insulation-displacement contact) connector type


• Current rating of 1 A


• Dimensions of 110 (length) x 70 (width) x 62 mm (depth)


• Maximum operating temperature of +50°C


• Minimum operating temperature of -20°C

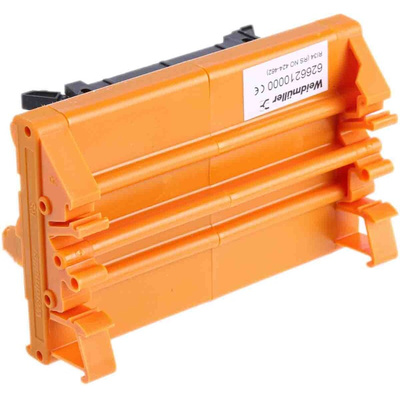

• DIN rail mounting type


• 34 contacts


• Voltage rating of 50 V
