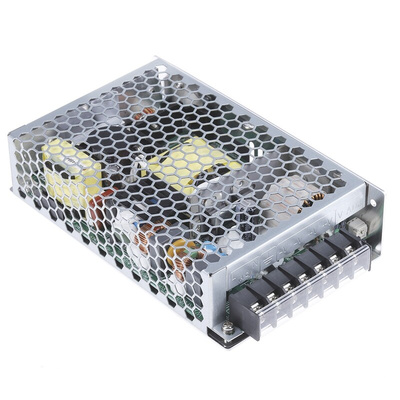

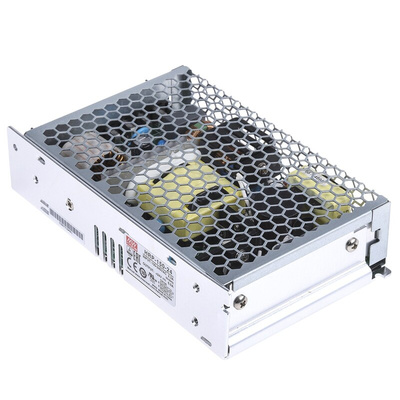

MEAN WELL Switching Power Supply, HRP-150-24, 24V dc, 6.5A, 156W, 1 Output, 120 → 370 V dc, 85 → 264 V ac, Источник питания

Mean Well Embedded Switch Mode Power Supply

The Mean Well HRP-150 series 156W single output AC to DC embedded switch mode power supply has an output current rating of 6.5A at 24VDC. It has a universal input supply voltage rating ranging from 85VAC to 264VAC/120VDC to 370VDC.
Note:
Power derating above 40°C
MTBF to MIL-HDBK-217F

Features and Benefits

High efficiency
Long life and high reliability
No load power consumption less than 0.5W
Built-in active PFC function
Built-in constant current limiting circuit
Built-in remote sense function
Short circuit
Over load
Over voltage and over temperature protection
Withstands 300VAC surge input for 5 seconds
Low profile of 1U

Certifications

UL60950-1
TUV
EN60950-1
CB certified
EN55022 class B (EMC compliance)
EN61000-3-2,-3 (power factor correction)

HRP-150 Series specification sheet

Declaration Of Conformity
