RS PRO 25-Contact Male Interface Module, D-sub Connector, DIN Rail Mount, 1A, Модуль

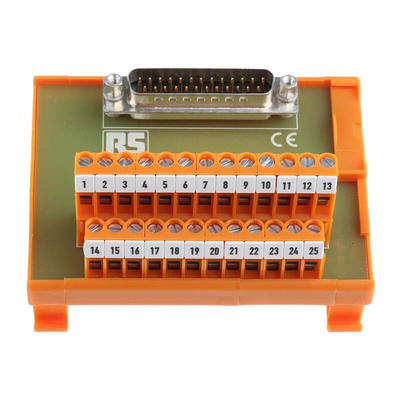

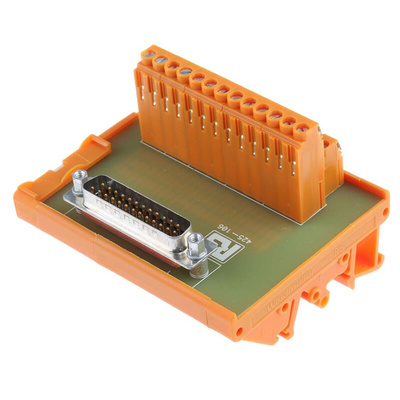

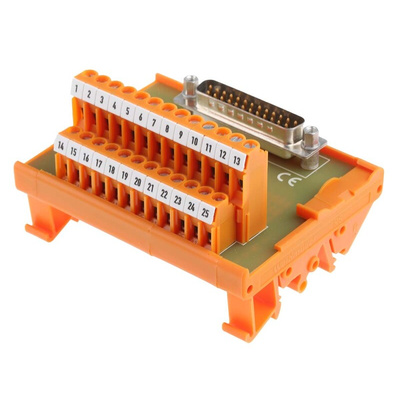

RS PRO, 25 Pole D-Sub Connector, Male Interface Module, DIN Rail Mount

Quickly and easily link your electronic equipment to your electrical control systems with this male interface module from RS PRO. It has a simple plug-and-play interface that lets you control your devices directly, and it mounts onto a DIN rail for straightforward installation.


The screw terminals firmly hold the wires in place, resulting in an electrically robust attachment point that assures a strong and secure connection. It's constructed of polyamide (PA), which is a tough and durable material. The gold-plated contacts are resistant to rust, mechanical damage and corrosion, making it a safe choice for demanding applications.


For a reliable connection, this D-sub connector protects against electromagnetic interference. Thanks to its compact dimensions, it's suitable for use in tight spaces.

Features and Benefits

• Cable cross-sectional area (CSA) of 4 mm²


• D-sub connector type


• Current rating of 1 A


• Depth of 62 mm


• Dimensions of 90 (length) x 70 (width) x 62 mm (depth)


• Male gender


• Maximum operating temperature of +50°C


• Minimum operating temperature of -20°C


• DIN rail mounting type


• 25 contacts


• Voltage rating of 50 V

Datasheet
