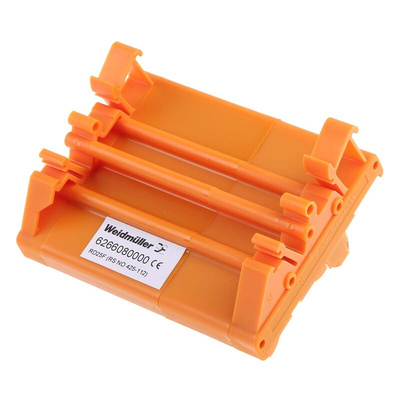

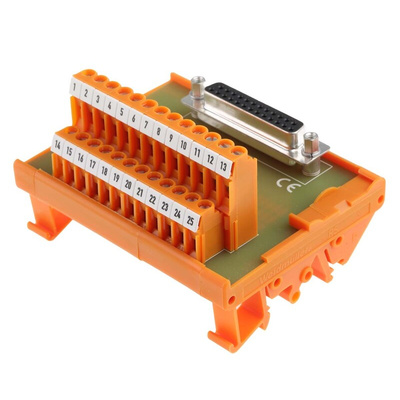

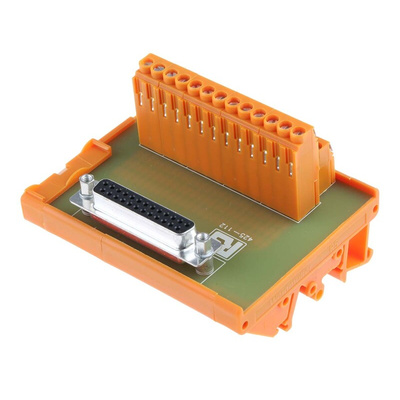

RS PRO 25-Contact Female Interface Module, D-sub Connector, DIN Rail Mount, 1A, Модуль

RS PRO 25 Pole D-Sub Connector, Female Interface Module, DIN Rail Mount

Need to connect your electronic devices to electrical control systems? This RS PRO male interface module is a good choice. It includes a simple plug-and-play interface that allows you to directly control your devices, and it mounts onto a DIN rail for simple installation.


The wires are securely held in place by the screw terminals, resulting in an electrically robust attachment point that ensures a strong and solid connection. It's made of a robust polyamide (PA) material that's resistant to wear for long-lasting performance. The gold-plated contacts resist rust, mechanical damage and corrosion, allowing you to use this module safely in demanding applications.


This D-sub connector protects against electromagnetic interference for an uninterrupted connection. Its compact size makes it suitable for use in tight spaces.

Features and Benefits

• Cable cross-sectional area (CSA) of 4 mm²


• D-sub connector type


• Current rating of 1 A


• Depth of 62 mm


• Dimensions of 90 (length) x 70 (width) x 62 mm (depth)


• Female gender


• Maximum operating temperature of +50°C


• Minimum operating temperature of -20°C


• DIN rail mounting type


• 25 contacts


• Voltage rating of 50 V
