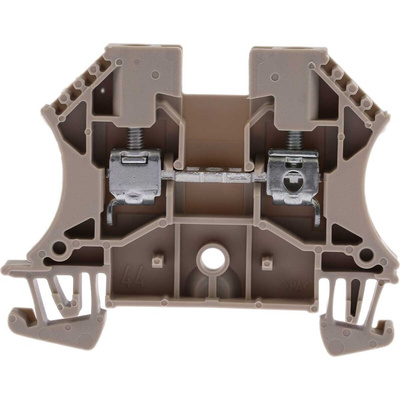

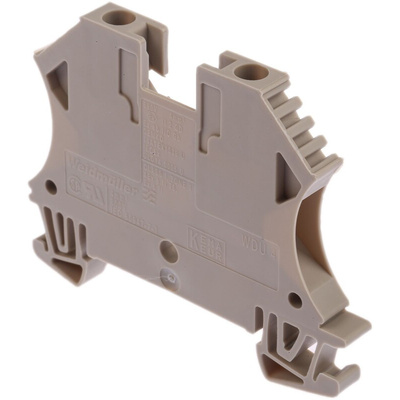

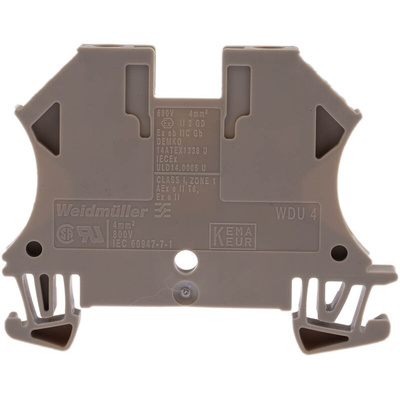

1020100000, Weidmuller WDU Series Beige Feed Through Terminal Block, 4mm², Single-Level, Screw Termination, ATEX

’W’ Series Terminal Blocks

One key advantage of the W-Series is the choice of plug-in (ZQV) or screw-in (WQV) cross-connections within one modular terminal. Saving substantial time in comparison to other screw terminals.

Features and Benefits:

Terminals available in a range of colours
Screw-in and a plug-in cross connection system is available for screw terminals

Product Application Information

Handy components to build up your terminal block, with simple time saving options. Thanks to the unique design patent, you can now connect two conductors of the same cross section into the same clamping point without difficulty.

A great solution if you want to connect your assembly together without getting shocked or the possibility of something becoming loose. Simply attach to your terminal block, screw down, and securely clamp in place.

Approvals

CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR

Weidmuller Feed-Through Terminal Block, 32A Current Rating, 26 to 10AWG Wire Size - WDU Series - 1020100000

Use this feed-through terminal block from Weidmuller to safely link cables to your electrical panels and equipment. Thanks to its two-way configuration, you can connect up to two wires for a tidy setup. This unit's housing is made from a Wemid thermoplastic material, which provides resistance to heat and wear for use in harsh environments. Its current rating of 32A and its voltage rating of 800V make this terminal block a safe choice for heavy-duty industrial applications.

Features & Benefits

• Rated impulse withstand voltage of 8kV to handle sudden spikes in voltage
• Compatible with wires ranging in size from 26 to 10AWG in size for versatility
• Wide operating temperature range of -50°C to +120°C for use in extreme conditions
• Snap-on mounting on a DIN rail for simple, tool-free installation

Applications

• Automotive manufacturing
• Oil and gas plants
• Electrical transmission stations

How large is this terminal block?

This terminal block has compact dimensions of 60 (L) x 6.1 (W) x 46.5mm (H), making it a practical choice for setups where space is limited.

Approvals

1-11

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.

WDU 4 standard terminal,32A
