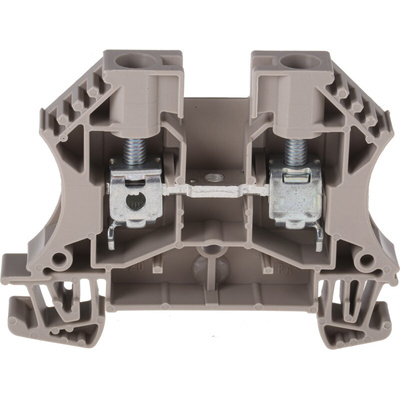

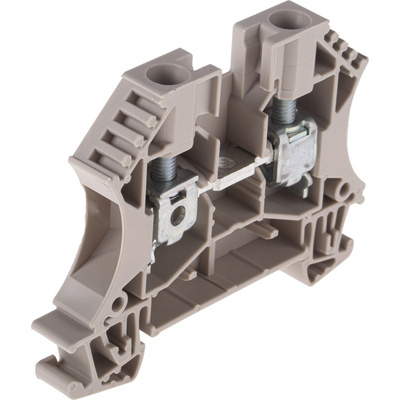

1020200000, Weidmuller WDU Series Brown Feed Through Terminal Block, 6mm², Single-Level, Screw Termination, ATEX

’W’ Series Terminal Blocks

One key advantage of the W-Series is the choice of plug-in (ZQV) or screw-in (WQV) cross-connections within one modular terminal. Saving substantial time in comparison to other screw terminals.

Features and Benefits:

Terminals available in a range of colours
Screw-in and a plug-in cross connection system is available for screw terminals

Product Application Information

Handy components to build up your terminal block, with simple time saving options. Thanks to the unique design patent, you can now connect two conductors of the same cross section into the same clamping point without difficulty.

A great solution if you want to connect your assembly together without getting shocked or the possibility of something becoming loose. Simply attach to your terminal block, screw down, and securely clamp in place.

Approvals

CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR

Weidmuller Feed-Through Terminal Block, 26 to 8AWG Wire Size, 41A Current Rating - W Series - 1020200000

This feed-through terminal block from Weidmuller provides a safe means of connecting to live electrical systems like circuits. It allows you to easily join two conductors with the same cross-sectional area to a single clamping point. Screw connections help to ensure simple and secure wiring. The Wemid frame provides effective insulation for safety in your work environment. It has a broad operating temperature range between -50°C and +120°C, so it's suitable for use in harsh industrial settings.

Features & Benefits

• Designed for snap-on mounting on a DIN rail for simple installation without the need for specialised tools
• Conductive 10mm electrolytic copper bars increase current loading capacity for enhanced efficiency
• Self-extinguishing for safety in the event of a fire
• Compact dimensions of 60 (L) x 7.9 (W) x 46.5mm (H) for installation in tight spaces

Applications

• Industrial electrical installations
• HVAC systems
• Telecommunications

What does impulse withstand voltage rating mean?

This product's impulse withstand rating of 8kV means it will protect you and your equipment in case of significant voltage surges.

Approvals

1-11

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
