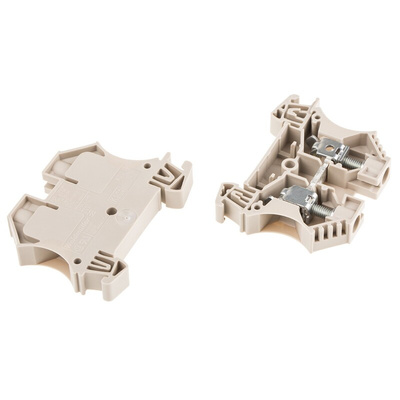

1020300000, Weidmuller WDU Series Brown Feed Through Terminal Block, 10mm², Single-Level, Screw Termination, ATEX

’W’ Series Terminal Blocks

One key advantage of the W-Series is the choice of plug-in (ZQV) or screw-in (WQV) cross-connections within one modular terminal. Saving substantial time in comparison to other screw terminals.

Features and Benefits:

Terminals available in a range of colours
Screw-in and a plug-in cross connection system is available for screw terminals

Product Application Information

Handy components to build up your terminal block, with simple time saving options. Thanks to the unique design patent, you can now connect two conductors of the same cross section into the same clamping point without difficulty.

A great solution if you want to connect your assembly together without getting shocked or the possibility of something becoming loose. Simply attach to your terminal block, screw down, and securely clamp in place.

Approvals

CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR

Weidmuller Feed-Through Terminal Block, 16 to 6AWG Wire Size, 57A Current Rating - WDU Series - 1020300000

Forge a lasting connection on your DIN rail with this feed-through terminal block from Weidmuller. The terminal is made with hardened steel that's mechanically strong, paired with tinned copper to give you a reliable conductor. Its durable and flame-retardant Wemid housing adds a layer of protection for your contacts while insulating you from electric shock. Thanks to its high voltage rating of 1kV, this terminal block won't be over-powered by the demands of your industrial circuits.

• Snap-on mounting for speedy installation on a DIN rail
• Works with wire ranging in size between 16 and 6AWG for versatile use
• Wide operating temperature range between -50°C and +120°C for use in challenging environments
• Compact dimensions of 60 (H) x 9.9 (W) x 46.5mm (D) to add minimal bulk to your setup

Applications

• Processing plants
• Saw mills
• Garages and workshops
• Power distribution boards

What termination method does this block use?

This feed-through terminal block uses screw connections, so you can rest assured you'll get secure wiring.

Approvals

1-10

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
