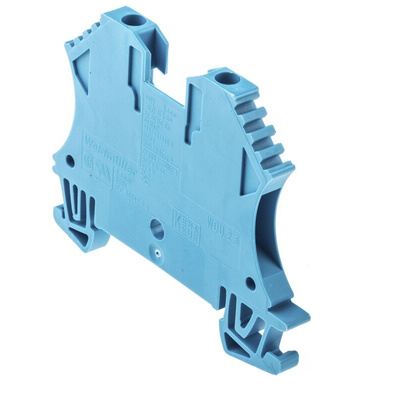

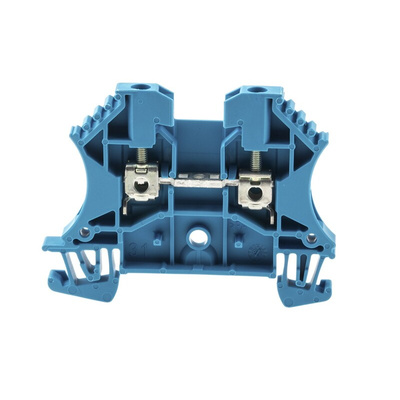

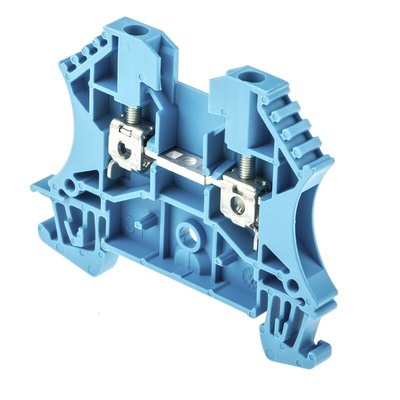

1020080000, Weidmuller WDU Series Blue Feed Through Terminal Block, 2.5mm², Single-Level, Screw Termination, ATEX

’W’ Series Terminal Blocks

One key advantage of the W-Series is the choice of plug-in (ZQV) or screw-in (WQV) cross-connections within one modular terminal. Saving substantial time in comparison to other screw terminals.

Features and Benefits:

Terminals available in a range of colours
Screw-in and a plug-in cross connection system is available for screw terminals

Product Application Information

Handy components to build up your terminal block, with simple time saving options. Thanks to the unique design patent, you can now connect two conductors of the same cross section into the same clamping point without difficulty.

A great solution if you want to connect your assembly together without getting shocked or the possibility of something becoming loose. Simply attach to your terminal block, screw down, and securely clamp in place.

Approvals

CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR

Weidmuller Feed-Through Terminal Block, 30 to 12AWG Wire Size, 8kV Impulse Withstand Voltage - W Series - 1020080000

Need a safe way to connect wires to electrical systems such as industrial circuits? Choose this feed-through terminal block from Weidmuller. Its insulated frame uses Wemid thermoplastic to remove the risk of contact with any live elements. This means you're protected from electric shocks when joining wires to its terminals. Screw connections make it simple to achieve secure wiring in your setup. The unit's impulse withstand voltage rating of 8kV protects you and your equipment in the event of large voltage surges.

Features & Benefits

• Snaps onto a standard 35mm DIN rail for ease of installation without the need for specialised tools
• Self-extinguishing behaviour to limit the spread of fire
• Accommodates wires ranging in size from 30 to 12AWG for versatility
• Compact dimensions of 60 (L) x 5.1 (W) x 46.5mm (H) for installation in tight spaces

Applications

• Power supplies
• Lighting controllers
• Building management systems

What temperatures can I use this terminal block in?

This product has a wide operating temperature range between -50°C and +120°C for use in harsh industrial environments.

Approvals

1-10

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.

WDU 2.5 blue standard terminal
