1050100000, Weidmuller W Series End Cover for Use with DIN Rail Terminal Blocks, ATEX

’W’ Series Terminal Blocks

One key advantage of the W-Series is the choice of plug-in (ZQV) or screw-in (WQV) cross-connections within one modular terminal. Saving substantial time in comparison to other screw terminals.

Features and Benefits:

Terminals available in a range of colours
Screw-in and a plug-in cross connection system is available for screw terminals

Product Application Information

Handy components to build up your terminal block, with simple time saving options. Thanks to the unique design patent, you can now connect two conductors of the same cross section into the same clamping point without difficulty.

A great solution if you want to connect your assembly together without getting shocked or the possibility of something becoming loose. Simply attach to your terminal block, screw down, and securely clamp in place.

Approvals

CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR

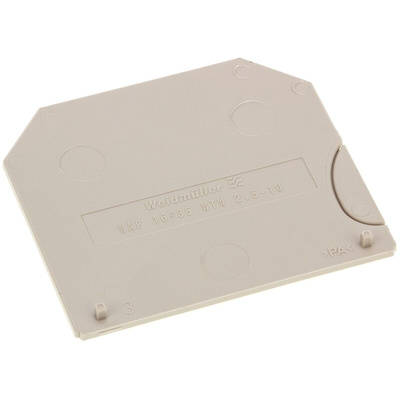

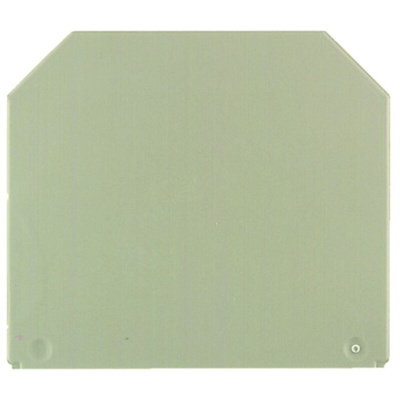

Weidmuller End Plate, 56mm Height, 4.618g Weight - W Series - 1050100000

Stop your terminal block from being a live wire with this end plate from Weidmuller. It's designed to fit on the open side of a modular terminal to make it finger-safe and guard you against electric shock. The protective cover also helps to ward off dust and moisture, so there's minimal chance of air-borne contaminants affecting the function of your system. It beats the heat of fire, as its flame-retardant construction means any burning stops in 10 seconds. This end plate perfectly matches terminal blocks from Weidmuller's W range, so installation is hassle-free.

Features:

• Wide operating temperature range between -50°C and +120°C for use in extreme conditions
• Light weight of 4.618g means it will place minimal strain on your DIN rail
• Halogen-free construction means it won't emit any toxic fumes in the event of a fire

Applications

• Food and beverage industries
• Automotive manufacturing
• Oil and gas plants
• Power utilities

What type of DIN rail is this end plate compatible with?

This end plate is suitable to use with top hat DIN rails for ease of installation.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
