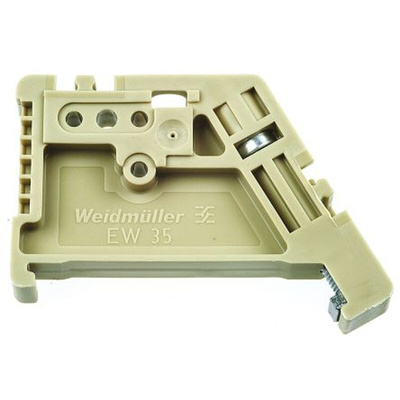

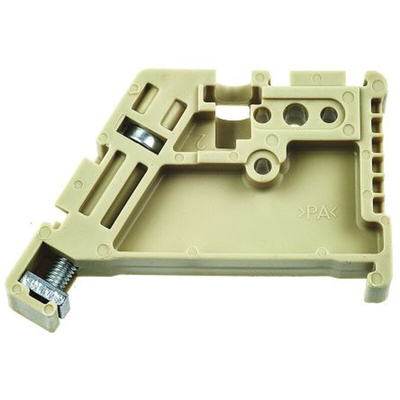

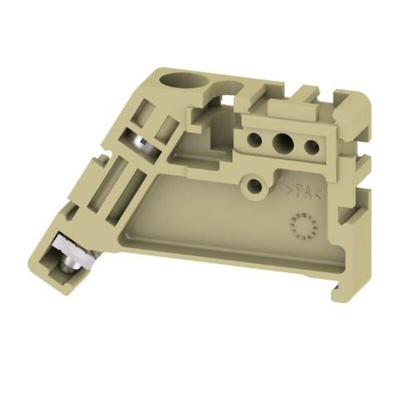

0383560000, Weidmuller EW Series End Stop for Use with DIN Rail Terminal Blocks, ATEX

End Stop

This EW 35 -383560000 DIN Rail terminal block End Stop also known as End Plate is suitable for TS 35 with screw holder and fixing screws that have been removed. The End Stop is moulded in the same material as the terminal and is designed to fit at each end of the assembled rail.

Benefits

• Reliable and easy to use
• Prevents other terminals and components from sliding
• Available with or without screws

Features

• Material: Polyamide 66
• Dimensions: 46mm(H) x 27mm (D) x 8.5mm (W)
• Weight: 5.32g
• Continuous Operating Temperature: -50 °C to 100 °C
• Type of mounting: Screwed
• Installation advice: Direct Mounting
• Rating: UL 94 flammability rating V-2
• Colour: Beige
• ROHS compliant

Typical Applications

End stops are handy and easy to use by simply placing them onto the rail in the desired position of your assembled terminal. End brackets guarantee a reliable, permanent mounting on the DIN rail and prevent sliding.

Weidmuller End Bracket, PA66 Material, 46mm Length - EW Series - 0383560000

In need of accessories for your terminal blocks? Try this end bracket from Weidmuller. It lets you secure a terminal block in place to prevent disconnection and helps to protect your block against dust and moisture. As it snaps directly onto a DIN rail, you'll find it simple to mount without the need for specialised tools. There are also pre-drilled holes for screws, making it easy to secure in place.

Features & Benefits

• Made of robust PA66 for resistance to abrasion, impact and chemicals
• Flame-retardant, so it won't contribute to the spread of flames in the event of a fire
• Broad operating temperature range from -50°C to +100°C for use in harsh environments
• Light weight of 5.32g means it won't place too much strain on your equipment

Applications

• Control, automation and signalling systems
• Telecommunications equipment
• HVAC systems

Are there accessories available to use with this terminal bracket?

Yes, you can use terminal markers (177-0951 and 705-9734) with this end bracket. These let you clearly label your terminal blocks for ease of identification.
