1054460000, Weidmuller WQV Series Jumper Bar for Use with DIN Rail Terminal Blocks, 32A

BL Terminal Series Compatible

TS32 ’G’ rail and TS35 ’Top Hat’ rail mounted terminals for use with the BL connector system enabling quick changing of functional units. The cable mounted BL units may be fitted to either the top or side of the terminal block.

All materials comply with RoHS requirements and have been tested to current environment guidelines.

Features:

• Rated voltage: 250Vac
• Rated current: 16A
• Nominal conductor csa: 1.5mm2
• Continuous operating temperature: -50 °C to 100 °C
• Material: PA 66
• To use with terminals

For TS32 ’G’ rail use WDU1.5/BLZ/32 232-572
For TS35 ’Top Hat’ rail use WDU1.5/BLZ/35 232-588

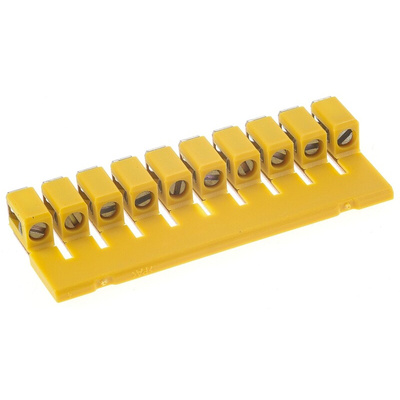

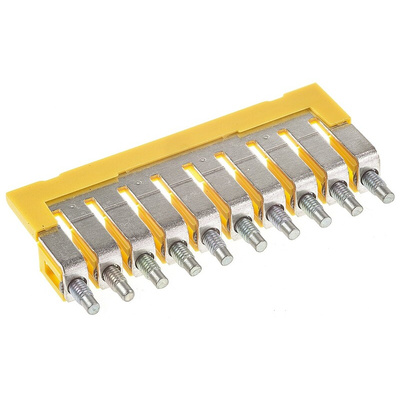

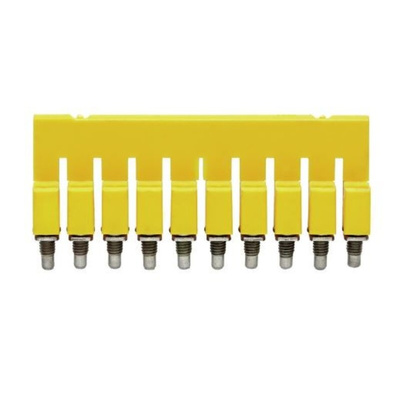

Weidmuller Jumper Bar, 10 Poles, Screw Mounting - WQV Series - 1054460000

Use this 10-pole jumper bar from Weidmuller to connect multiple terminal blocks and distribute power through your system. It's designed for use with DIN rail terminal blocks, helping you build a compact and organised system. The screw connectors allow you to make quick and secure electrical connections. A current rating of 32A means it's suitable for use in high-power applications. The PA66 housing is resistant to heat, impact and wear to give you a long service life.

Features & Benefits

• Broad operating temperature range of -60°C to +130°C for use in harsh environments
• Light weight of just 7.75g minimises strain on your system

Applications

• Process control
• Building installations

What are the advantages of using a jumper bar?

Using a jumper bar means you don't need to individually wire several points together. This can save you time and effort when building your system and gives you a more compact installation.

Where are jumper bars used?

In addition to panels for power distribution, jumper bars are commonly found in applications such as motors and circuit boards.
