1052060000, Weidmuller WQV Series Jumper Bar for Use with DIN Rail Terminal Blocks, 41A

’W’ Series Terminal Blocks

One key advantage of the W-Series is the choice of plug-in (ZQV) or screw-in (WQV) cross-connections within one modular terminal. Saving substantial time in comparison to other screw terminals.

Features and Benefits:

Terminals available in a range of colours
Screw-in and a plug-in cross connection system is available for screw terminals

Product Application Information

Handy components to build up your terminal block, with simple time saving options. Thanks to the unique design patent, you can now connect two conductors of the same cross section into the same clamping point without difficulty.

A great solution if you want to connect your assembly together without getting shocked or the possibility of something becoming loose. Simply attach to your terminal block, screw down, and securely clamp in place.

Approvals

CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR

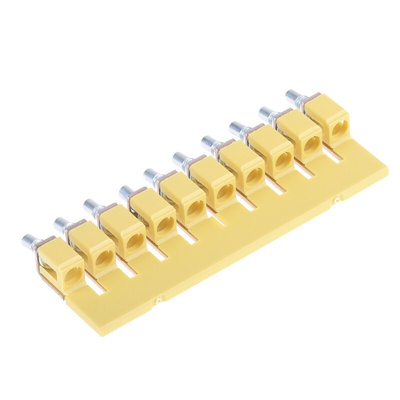

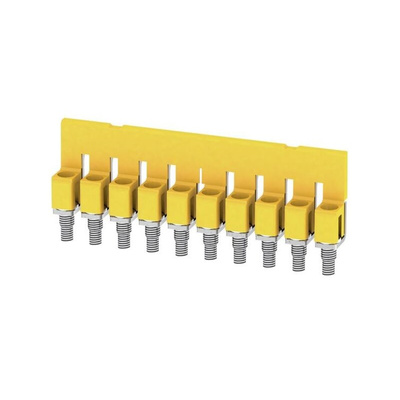

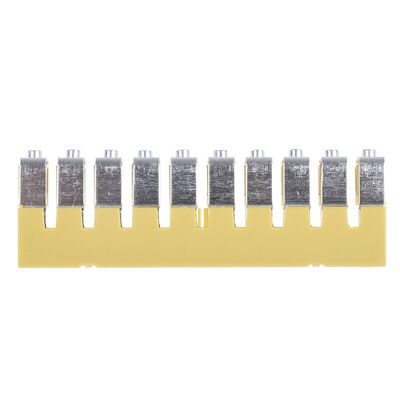

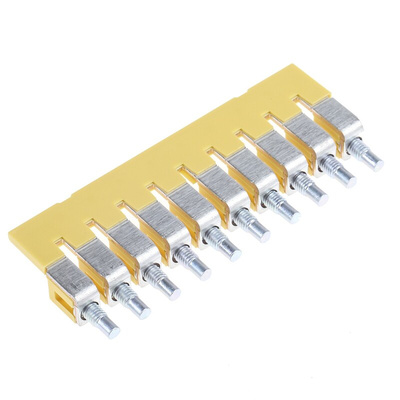

Weidmuller Jumper Bar, 41A Current Rating, 10 Poles - W Series - 1052060000

Give your terminal blocks the power they need with this jumper bar from Weidmuller. You can use it to control as many as 10 circuits at the same time without any excess wiring, so your work area looks spick and span. Thanks to its compact dimensions of 59.4 (H) x 7.6 (W) x 18mm (D), you won't break a sweat when installing it in tight spots. Its PA housing provides good insulation, so it's on hand to ensure that you're not exposed to electric shock while handling it.

• Wide operating temperature range between -50°C and +100°C for use in demanding conditions
• Bright yellow colour makes it easy to identify
• Current rating of 41A for use in high-power applications
• DIN rail mounting is simple and doesn't need complex tools, saving time and effort

Applications

• Consumer electronics
• Industrial conveyor systems
• Transportation industry

Is this jumper bar flame-retardant?

Yes, this unit stops burning in 30 seconds or less in the event of a fire, making it suitable for use in harsh environments.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
