1052460000, Weidmuller WQV Series Jumper Bar for Use with DIN Rail Terminal Blocks, 63A

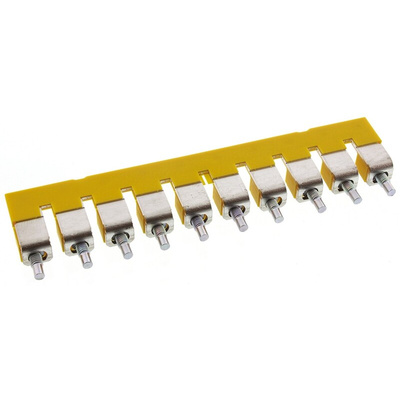

Weidmuller Jumper Bar, 10 Poles, 18.85g Weight - W Series - 1052460000

Put your terminal blocks in touch using this jumper bar from Weidmuller. The 10-pole accessory is designed to help you quickly make multiple electrical connections between terminals. This saves you the hassle of running multiple short wires between your components, helping to keep your setup tidy and saving you time and effort. As it's made of robust PA66, it stands up to corrosion and wear for use in harsh conditions. It has a broad operating temperature range between -50°C and +100°C, so you can count on it to keep its cool.

Features & Benefits

• Light weight of 18.85g to place minimal strain on your DIN rail
• Current rating of 63A makes it suitable for use in demanding circuits
• Designed for direct mounting for quick and simple assembly
• Compact dimensions of 96.1 (H) x 7.55 (W) x 18mm (D) to take up minimal space in your setup

Applications

• Automotive manufacturing
• Food and beverage industries
• Distribution warehouses
• Power utilities

Is this jumper bar flame-retardant?

Yes, the unit stops burning in 30 seconds or less for safety in the event of a fire.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
