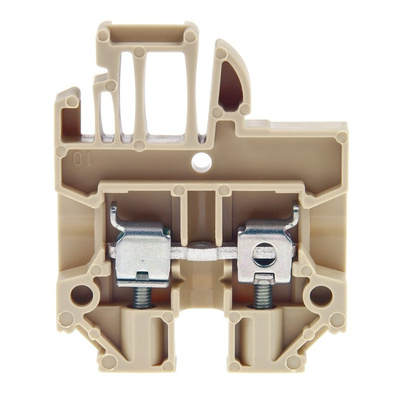

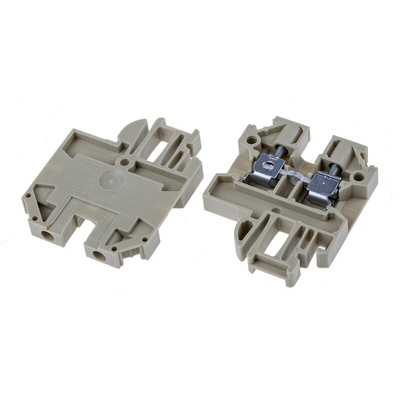

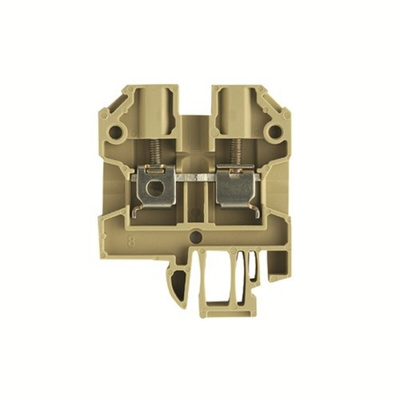

0279660000, Weidmuller SAK Series Brown Feed Through Terminal Block, 2.5mm², Single-Level, Screw Termination, IECEx

Weidmuller Feed-Through Terminal Block, 8kV Rated Impulse Withstand Voltage, 26 to 10AWG Wire Size Range - SAK Series - 0279660000

Link cables in your electrical system by passing them through this feed-through terminal block from Weidmuller. It's made from tough PA66, so it stands strong against impact and wear. As its housing also has self-extinguishing properties, you can rest assured it won't contribute to the spread of a fire. Mount this terminal block in a snap by clipping it to a DIN rail without the need for any tools. The open right side of this product gives you free rein to adjust wires as needed without taking it off the rail.

Features & Benefits

• Rated impulse withstand voltage of 8kV to stand up to powerful surges
• Reliable performance in harsh conditions, thanks to its wide operating temperature range between -50°C and +100°C
• Current rating of 24A for use with heavy-duty equipment

Applications

• Medical technology
• Telecommunications
• Building automation
• Chemical plants

What wire sizes can I fit into this terminal block?

You can fit wires that range in size from 26 to 10AWG into this terminal block, so it's a versatile piece of kit.

Approvals

1, 2, 4 -7

SAK Series

Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting

SAK, AKZ Terminal System - Data Sheet

KEMA 97ATEX1798U

SAK 2.5 standard terminal 24A

SAK Series Catalogue
