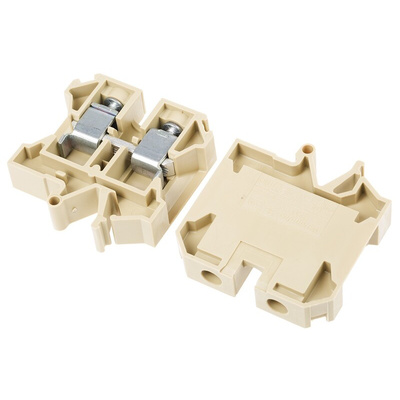

0271060000, Weidmuller SAK Series Brown Feed Through Terminal Block, 16mm², Single-Level, Screw Termination

Standard Terminals, End Covers, and Jumper Bars

Standard or feed through rated at 750V . Terminals of the same type may be cross connected using the pre-assembled jumper bars for up to 10 poles (2.5mm-16mm terminals) and 2 poles (35mm terminals).,TSCH partitions fit jumper bar cut outs.

Note

TSCH small partitions fit SAK 2.5, 5, 6N, 10 and 16 standard terminals.,Stock No.s 425-639 and 425-645 do not have DEMKO Approval

Approvals

CSA certified, UL listed, NEMKO, SEV, KEMA, DEMKO

Approvals

1, 2, 4 -6

SAK Series

Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting

SAK, AKZ Terminal System - Data Sheet

KEMA 97ATEX1798U
