DT062S-CE06, Deutsch, DT Automotive Connector Plug 2 Way, Crimp Termination

DEUTSCH DT Series Plugs

DEUTSCH DT plug housings are designed for cable to cable connections. Their seals provide a robust seal with a high degree of environmental protection. Safe, versatile and reliable, DT plug connector housings are made from a thermoplastic which is ideal for automotive applications.
You will not struggle for choice as the DT plugs are available in 2 to 12 pin options. They use size 16 DEUTSCH contacts, each with 13-amp continuous capacity. The housings feature an integrated latch for mating.

Features and Benefits

• IP68 waterproof rating
• 14-20 AWG (2.5-0.5mm²)
• Wire-to-wire connection
• 2/3/4/6/8/12 cavity arrangements
• In-line, flange or PCB mount options
• Integrated latch for mating
• Wedgelocks confirm contact alignment and retention
• Operating Temperature: -55°C to +125°C

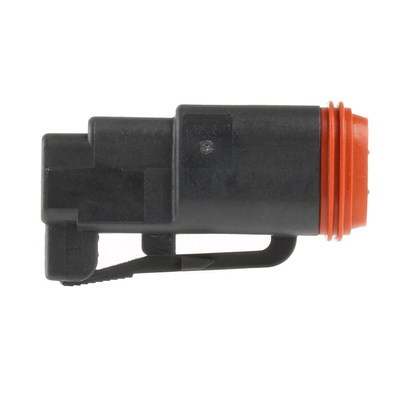

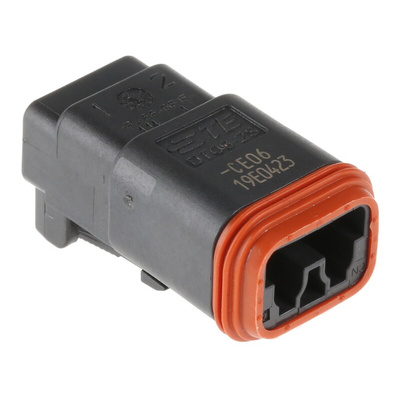

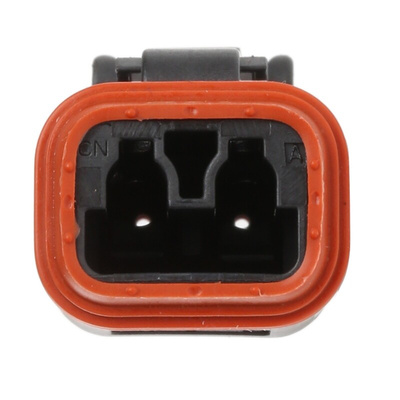

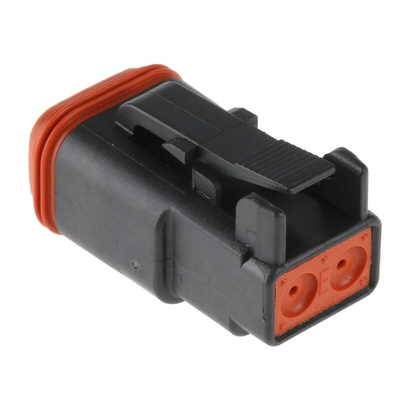

The Deutsch DT062S-CE06 is a 2-way automotive connector in a black plastic housing. This high-performance, tough connector is ideal for automotive applications in harsh environments.
This DT062S-CE06 male connector has a thin wall with 1.35 to 3.05mm wire insulation diameter. It also offers enhanced seal retention and works with the W2S-P012 green secondary lock.

• 2-way male plug connector
• Black plastic housing
• Thin wall
• Perfect for tough environments
• Compatible Wedge: Deutsch W2S-P012 (425-610)
• IP68 rating (waterproof)
• Voltage rating 250 V
• Centerline (Pitch) 5.46mm
• Primary locking feature integrated in the housing
• Dimensions (WxLxH): 15.01 x 28.4 x 15.77 mm

Typical Applications:

The DT06-2S-CE06 plug is ideal for use in engines, transmissions, chassis, and cabs. It is suitable for harsher environments, for example in construction, off-road, heavy goods, and agricultural vehicles. Example applications include engine management systems, hydraulics controls, diagnostics, ABS and chassis wiring.
