DT042P-CE02, Deutsch, DT Automotive Connector Socket 2 Way, Crimp Termination

DT Receptacles

From Deutsch, this DT Series receptacle is designed for cable to cable connections, and when mated is sealed to a high degree of environmental protection. Safe, versatile and reliable, DT receptacle connectors are ideal for automotive applications.

Features and Benefits

• IP68
• Wire-to-Wire Connection System
• Operating Temperature Range of -55 to +125

Available in this Range

• Stock No. 425-765 is a 2 Way Receptacle Connector Housing for Male Terminals
• Stock No. 425-531 is a 3 Way Receptacle Connector Housing for Male Terminals
• Stock No. 425-632 is a 4 Way Receptacle Connector Housing for Male Terminals
• Stock No. 425-705 is a 6 Way Receptacle Connector Housing for Male Terminals
• Stock No. 425-709 is an 8 Way Receptacle Connector Housing for Male Terminals
• Stock No. 425-418 is a 12 Way Receptacle Connector Housing for Male Terminals
• Stock No. 915-6534 is a 2 Way Receptacle Connector Housing for Male Terminals
• Stock No. 915-6537 is a 3 Way Receptacle Connector Housing for Male Terminals
• Stock No. 915-6531 is a 4 Way Receptacle Connector Housing for Male Terminals
• Stock No. 915-6540 is a 6 Way Receptacle Connector Housing for Male Terminals
• Stock No. 915-6543 is an 8 Way Receptacle Connector Housing for Male Terminals

Approvals

IP67

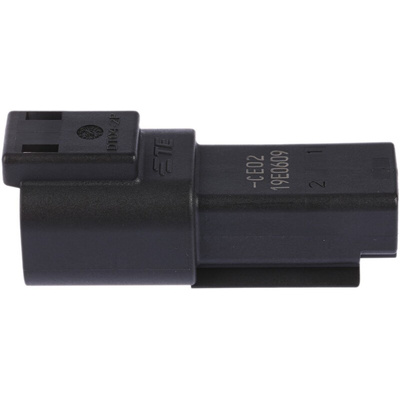

The Deutsch DT042P-CE02 is a 2-way automotive connector in a black plastic housing. This high-performance, tough connector is ideal for automotive applications in harsh environments.
This DT042P-CE02 female connector has a thin wall with 1.35 to 3.05mm wire insulation diameter. It also offers enhanced seal retention and works with the WP2 green secondary lock.
The DT042P-CE02 receptacle is ideal for use in engines, transmissions, chassis and cabs. It is suitable for harsher environments, for example in construction, off-road, heavy goods and agricultural vehicles. Example applications include; engine management systems, hydraulics controls, diagnostics, ABS and chassis wiring.

• 2-way female connector
• Black plastic housing
• Thin wall
• Perfect for tough environments
• Compatible Wedge: Deutsch WP2 (425-620)
