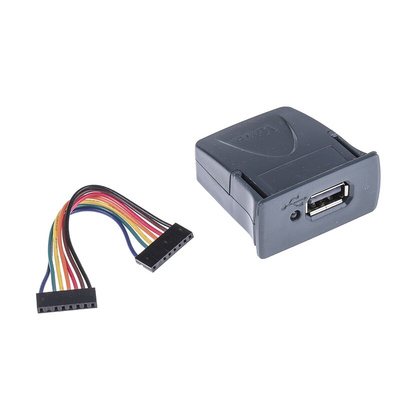

FTDI Chip USB Interface Board
The FTDI chip USB interface board is possibly the easiest solution for adding a USB flash drive interface to an existing product. The module features a USB connector interface connected to the VNC1L USB Host controller. The module provides a simple 4-signal interface supporting easy connectivity to an external device via UART or SPI. The connector interface also features 5V and ground connections. It is ideal for evaluation and development of VNC1L designs.
Features and Benefits
8-pin connector with 2mmpitch
8-way header interconnect cable provided

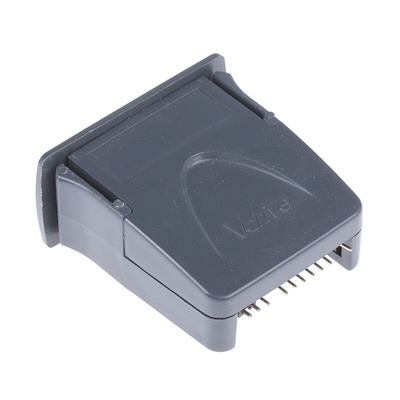

Enclosure with snap in place clips allows for easy front panel mounting
Jumper selectable UART or SPI interfaces
Program or update firmware via USB Flash disk or via UART interface
Traffic indicator LED

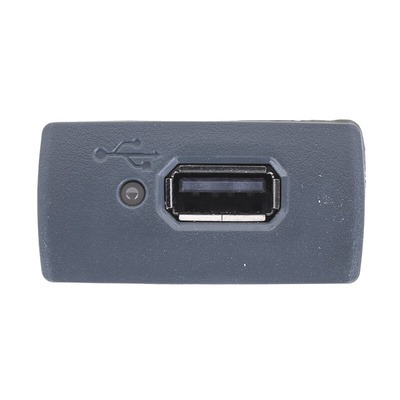

USB ’A’ type socket to connect USB flash disk
Uses Vinculum VDAP firmware and command set
Applications
Communication
Embedded system
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
