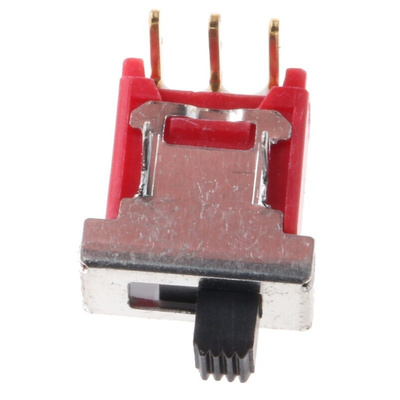

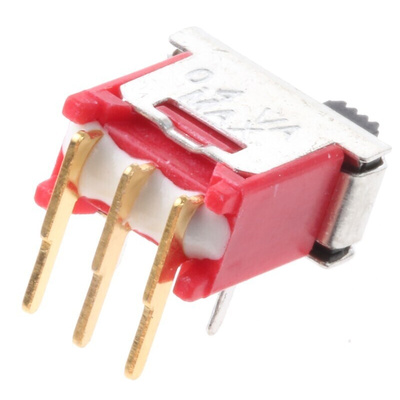

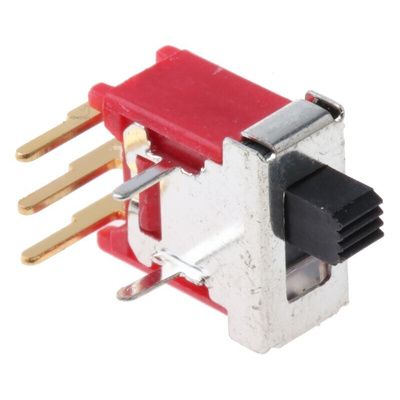

RS PRO PCB Slide Switch SPDT Latching 400 mA @ 20 V Slide, Переключатель

RS PRO PCB Slide Switch Single Pole Double Throw (SPDT) Latching 400 mA @ 20 V Slide

This Single Pole Double Throw (SPDT) slide switch from RS PRO is useful for turning Printed Circuit Boards (PCBs) on and off. It has a single input terminal that connects a circuit to two output terminals, with a switch that can quickly change the input current between the two.
It's made with gold plated contacts for protection against oxidisation and corrosion. It also has an actuator made of nylon material that provides effective insulation from electric short circuits. With a wide temperature range of between -30°C and +85°C, this component can be used in a variety of environments with harsh operating conditions.

Features and Benefits

• Nylon actuator material
• Slide actuator type
• Single Pole Double Throw (SPDT) contact configuration
• Contact current rating of 400 mA (milliamperes) at 20 V (volts)
• Gold-plated contact material
• Contact resistance of 20 mΩ
• Dimensions of 10.16 (length) x 5.08 (width) x 10.03 mm (depth)
• Operating temperature range of -30°C to +85°C
• Mechanical life of 30000 operations
• PCB mounting type
• Latching switch operation
• Through-hole terminal type
• Voltage rating of 20 V AC/DC
