RS PRO PCB Slide Switch SPDT Latching 400 mA @ 20 V Slide, Переключатель

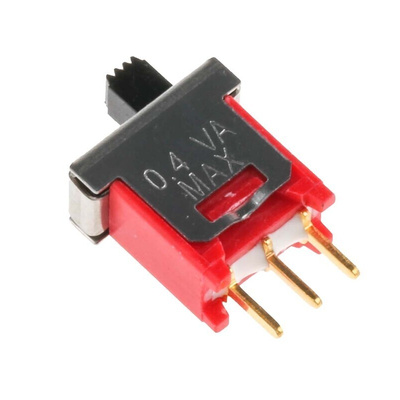

RS PRO PCB Slide Switch Single Pole Double Throw (SPDT) Latching 400 mA at 20 V Slide

Use this RS PRO Single Pole Double Throw (SPDT) slide switch to turn printed circuit boards (PCBs) on or off. It includes a single input terminal that links a circuit to two output terminals, as well as a switch that allows the input current to be easily changed.


For protection against oxidation and corrosion, it has gold-plated contacts. It also features a nylon actuator that provides electrical insulation to protect against short circuits. This component can be used in a variety of locations with difficult working circumstances thanks to its wide temperature range of -30ºC to +85ºC.

Features and Benefits

• Nylon actuator material


• Slide actuator type


• Single Pole Double Throw (SPDT) contact configuration


• Contact current rating of 400 mA (milliamperes) at 20 V (volts)


• Gold-plated contact material


• Contact resistance of 20 mΩ


• Dimensions of 10.16 (length) x 5.08 (width) x 9.2 mm (depth)


• Operating temperature range of -30ºC to +85ºC


• Mechanical life of 30000 operations


• PCB mounting type


• Latching switch operation


• Through-hole terminal type


• Voltage rating of 20 V AC/DC
