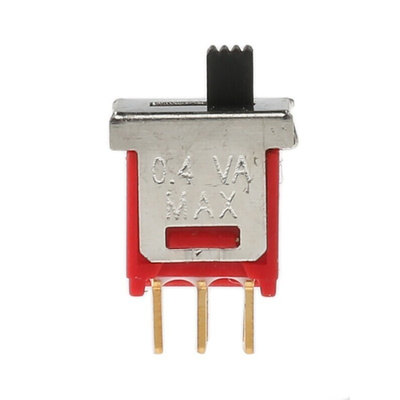

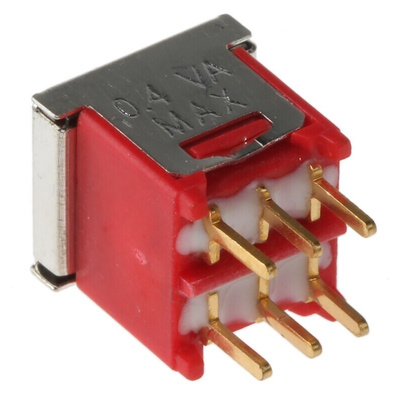

RS PRO PCB Slide Switch DPDT Latching 400 mA @ 20 V Slide, Переключатель

RS PRO PCB Slide Switch Double Pole Double Throw (DPDT) Latching 400 mA at 20 V Slide

Need to turn a printed circuit board (PCB) on and off? Turn to this RS PRO Double Pole Double Throw (DPDT) slide switch. It has two input terminals that connect a circuit to two output terminals. For convenience, it has a switch to conveniently change the input current.


A nylon actuator provides insulation against electric short circuits, while gold-plated contacts offer resistance to oxidation and corrosion. Thanks to its wide operating temperature range of -30ºC to +85ºC, this component is suitable for use in a variety of challenging operating conditions.

Features and Benefits

• Nylon actuator material


• Slide actuator type


• Double Pole Double Throw (DPDT) contact configuration


• Contact current rating of 400 mA (milliamperes) at 20 V (volts)


• Gold-plated contact material


• Contact resistance of 20 mΩ


• Dimensions of 10.16 (length) x 5.08 (width) x 9.2 mm (depth)


• Operating temperature range of -30ºC to +85ºC


• Mechanical life of 30000 operations


• PCB mounting type


• Latching switch operation


• Through-hole terminal type


• Voltage rating of 20 V AC/DC
