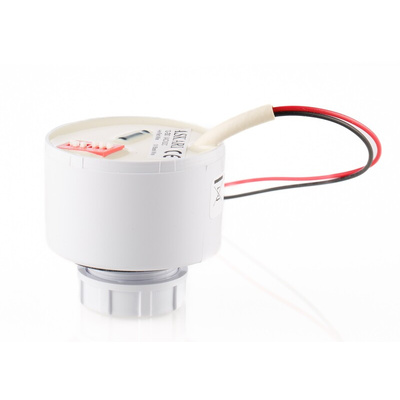

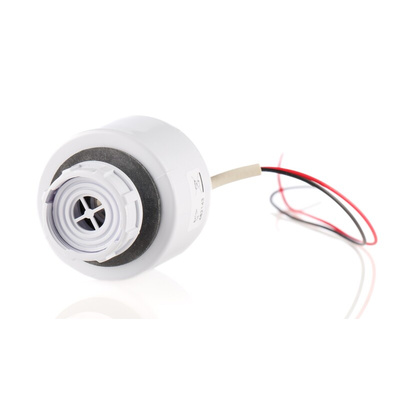

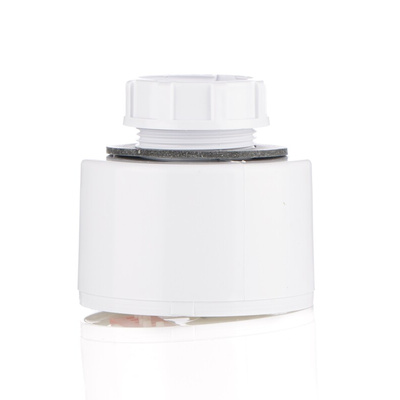

AP/W/S/VC/24AC, Eaton Panel Mount Electronic Sounder, 9 → 28 V dc, 24 V ac, 92dB at 1 m, IP65, AC, DC, 32-Tone

Fulleon Askari White Electronic Sounder - AP/W/S/VC/24AC

Fulleon's electronic sounders have been created and designed to combine high sound output with a professional design. Maximum audibility and simple installation are easily accomplished, this ease of use matched up with the high IP rating is what makes the Askari panel sounder from Fulleon suitable for a multitude of process and industrial environments.

Features & Benefits

• Ideal for retail, hotels and residential applications
• 32 tones, the tones are compatible with Roshni, Squashni and Flashni sounders
• Users will commonly find this type of electronic sounder within industrial, lighting and security applications
• Has a second tone for a two-stage alarm
• Easily accommodated and simple to install
• Being white in colour, the sounder has an aesthetically pleasing finish
• Optional internal or external use
• ABS construction - Acrylonitrile Butadiene Styrene. This type of plastic has a strong resistance to corrosive chemicals and physical impacts
• Features a current of 18mA and has a voltage rating of 9VDC to 28VDC
• Improved tone clarity, reducing confusion
• Automatic synchronisation
• Small and compact in size
• Dedicated panel fixing
• IP65 rating
• Option to use internally or externally
• Excepts most DC supplies

NOTE: Where a range of values are specified for sound output level, sound output frequency range and current consumption, the actual values will depend on the tone chosen and the volume setting where adjustable.

Eaton White 32-Tone Electronic Sounder, 9 to 28V DC, 92dB - Askari Panel Series - AP/W/S/VC/24AC

This white electronic sounder from Eaton promotes safety in industrial and commercial environments. It's a reliable audible alarm that alerts staff and visitors to a hazard in a building or factory setting. This sounder is panel-mounted so you can easily install it at the appropriate height to maximise audibility. There are 32 tones to signify a range of warnings, which makes it a versatile option. It emits sounds up to 92db (decibels) at a distance of 1m, so it's ideal for noisy environments like warehouses and shipyards.

• ABS (acrylonitrile butadiene styrene) construction makes this sounder robust and resistant to corrosives and chemicals for heavy-duty indoor and outdoor use
• IP65 (ingress protection) rating means internal components are protected against dust and other small contaminant particles

Can I sync this electronic sounder with a visual warning unit, such as a beacon?

Yes. This electronic sounder has an automatic synchronisation function so you can use it with visual warning components.

How much space do I need to install this electronic sounder?

This electronic sounder is 50mm in diameter, so you can easily install it in small spaces.

Note

Eaton formerly known as Fulleon

Instruction Leaflet Multi-Tone Sounders/Sounder Beacons

Machine Guarding and Safety Range Overview

AP/W/S/VC/24AC Instruction Sheet
