RS PRO Barrier Strip, 28 Contact, 9.5mm Pitch, Клеммная колодка

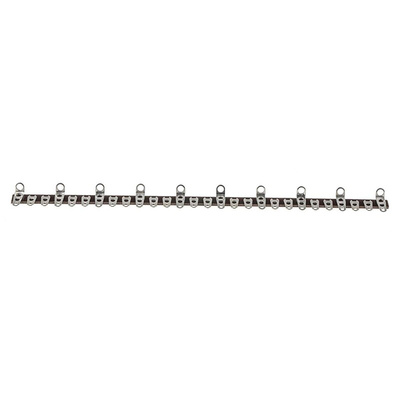

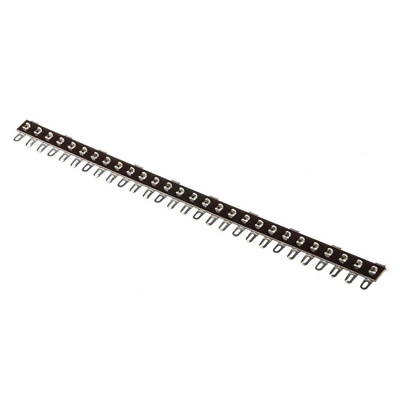

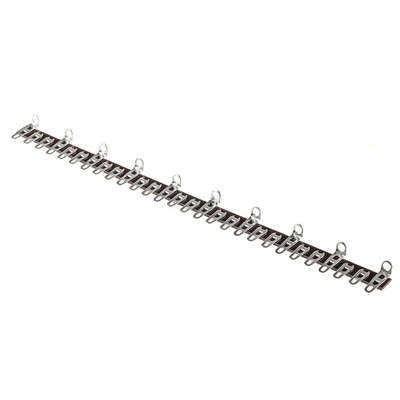

RS PRO Barrier Strip, 28 Contact, 9.5 mm Pitch

Use this barrier strip from RS PRO to connect multiple circuits to another circuit. It has a total of 28 contact points, of which 18 are insulated and 10 are suitable for earthed or fixing wires. This design allows for a variety of applications and makes the strip compatible with a range of circuits.
You can clamp the wires down to the metal contacts by simply tightening a screw, so there's no need for specialised tools. The screw termination provides a robust connection while still allowing for easy rewiring when needed.
The barrier strip's compact dimensions make it a good choice for use in areas where space is limited. You'll find this product used for distributing electricity as well as for connecting switches, electrical outlets and lighting fixtures to the mains.

Features and Benefits

• Dimensions of 266.7 (length) x 17.9 (width) x 10.6 mm (depth)
• Fixing centre of 28.6 mm
• 28 contacts
• Pitch of 9.5 mm

Datasheet
