RS PRO Barrier Strip, 28 Contact, 6.3mm Pitch, Клеммная колодка

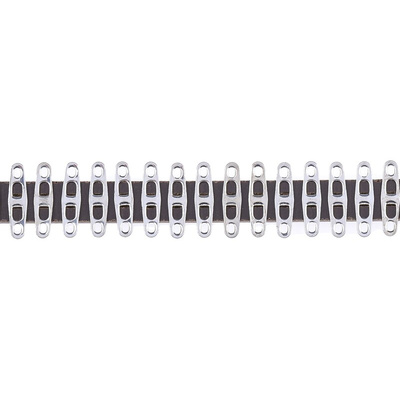

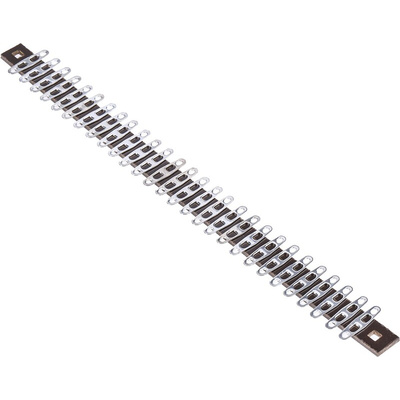

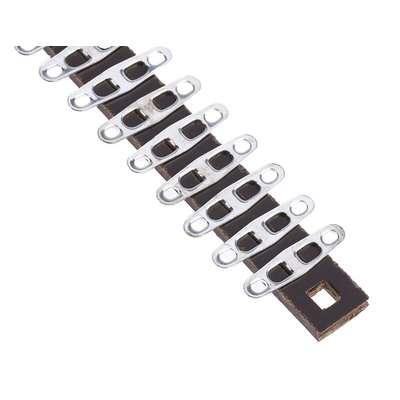

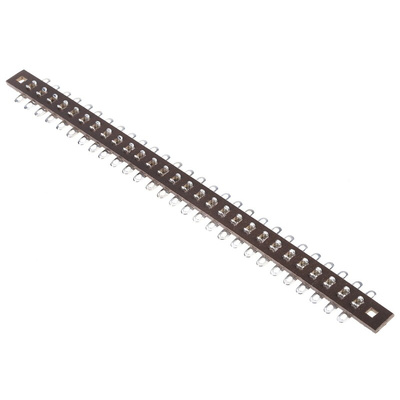

RS PRO Barrier Strip, 28 Contact, 6.3 mm Pitch

Connect numerous circuits to another circuit with this RS PRO barrier strip. There are 28 contact points in all, 18 of which are insulated and 10 of which are appropriate for earthed or fixing wires. This design makes the strip compatible with a wide range of circuits and enables use in a variety of applications.


There's no need for specialised equipment as you can simply tighten a screw to attach the wires to the metal contacts. The screw termination ensures a secure connection while allowing for quick rewiring if necessary.


Thanks to its small size, the barrier strip is ideal for use in applications where space is restricted. This product is commonly used to distribute energy as well as to link switches, electrical outlets, and lighting fixtures to the power supply.

Features and Benefits

• Dimensions of 194 mm (length) x 16.7 mm (width) x 4 mm (depth)


• Fixing centre of 28.6 mm


• 28 contacts


• Pitch of 6.3 mm

RS Pro Datasheet
