222-2470, Vero Technologies 96 Way DIN 41612 Eurocard Backplane FR4 Double Sided 84HP With 15.24mm Connector Pitch

Eurocard Backplanes, Double-Sided

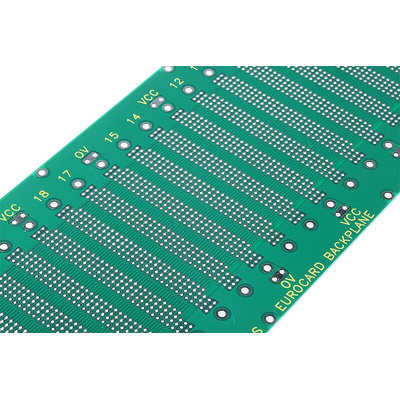

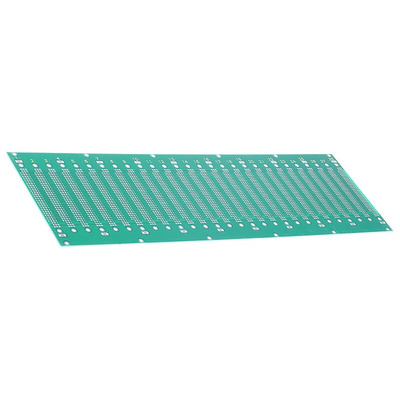

Double sided backplanes 3U high with pth for high reliability which will accept DIN41612 connectors. Suitable for use with subracks to IEC297-3.

96//96-way suitable for high speed logic systems where screening is required between each signal line. Can also be used for slower applications with a maximum of 84 seperate signal lines by breaking the 0V commoning line in the end position

Supplied with

2 insulated mounting strips

PC / VME Bus Boards

PC Compatible Prototyping Boards

Prototyping boards manufactured from epoxy glass material to BS 4584 part 3 or 16. Card thickness is 1.6 mm. Copper is 305 g/m² (1 oz/ft²). Edge connector fingers are gold plated to a thickness of 1.5 microns. 1.0 mm (0.040 in.). Diameter holes are pre-drilled on a 2.54 mm (0.1 in.) matrix.

Microboard Pattern

Incorporates, on the component side of the card, a colander ground plane for maximum screening and glitch free high speed operation, and complete solder mask protection.
