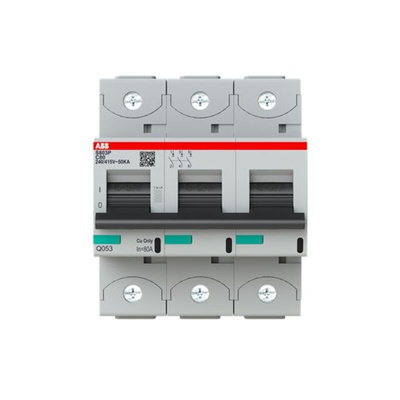

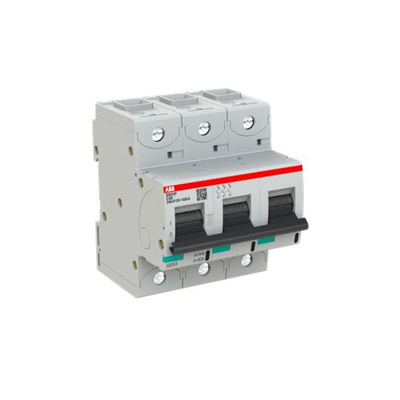

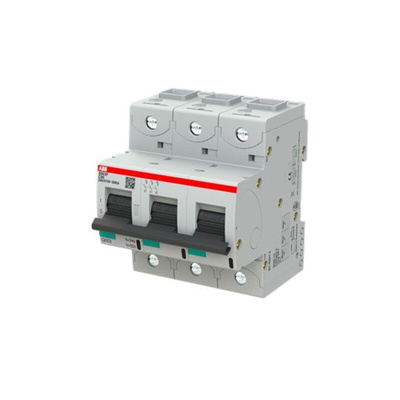

2CCG001232R0001, ABB High Performance S800N MCB, 3P, 80A Curve C, 400V AC, 36 kA Breaking Capacity

C-type tripolar from 36 kA - S800 Series

The ABB S800 series high-performance automatic circuit breakers set a new standard of excellence, thanks to their high current rating, breaking capacity, selectivity and safety features. They are the ideal solution for protecting your systems. Compact design, excellent current limitation and circuit breaker position indicators are just some of the characteristics that make this series highly flexible and functional. In addition, customers can select between cage or ring terminals and can chose from a wide range of accessories. C-type characteristics guarantee a short circuit cut-off response of 3-10 with normal nominal current. Suited for use in circuits that normally produce surge currents, such as fluorescent lighting and female electrical connectors in commercial applications.

Din-rail mounting
Operating temperature range: -25 to +60°C
Operating voltage range: 400 to 690 Vac, 50 to 60 Hz
Width: 79.5 mm

Standards

EN 60898-1, IEC 60947-2

Approvals

CCC

ABB MCB, 8kV Rated Impulse Withstand Voltage, 3 Poles - S800N Series - 2CCS893001R0804 S803N-C80

Looking for an electrical safety solution with the brawn to handle heavy-duty applications? Count on this high-performance 3-pole MCB from ABB to guard against faults that could cause equipment damage and workplace injuries. With an 80A current rating and 36kA breaking capacity, it's got what it takes to protect demanding systems while limiting nuisance trips to reduce needless downtime. The unit's thermal and electromagnetic tripping mechanisms shield against overloads and short circuits. You'll find installing this MCB a breeze – simply clip it in place on a standard DIN rail.

Features & Benefits

• Fast arc extinction for added protection
• Compact dimensions of 82.5 (L) x 81 (W) x 95mm (H) for installation in confined spaces
• Wide operating temperature range between -25°C and +60°C for use in harsh conditions
• IP20 rating indicates a touchproof unit for enhanced electrical safety

Applications

• Industrial systems
• Medical imaging equipment
• Construction industry
• Food and beverage processing plants

How long will this MCB last?

With electrical and mechanical lifespans of 6000 and 4000 cycles respectively, it's a durable unit that goes the extra mile.

• Globally Certified
• IEC60947-2
• EN45545 for Fire & Smoke
• IEC61373 for Vibration & Shock

S800 The High Performance MCB Technical catalogue

Datasheet_2CCG001232R0001
