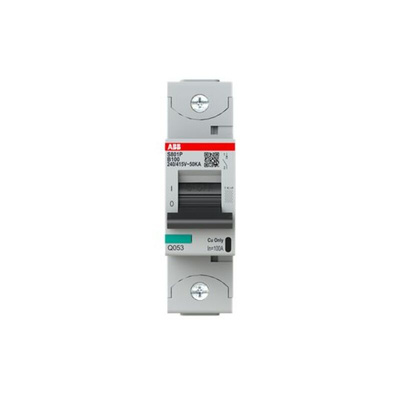

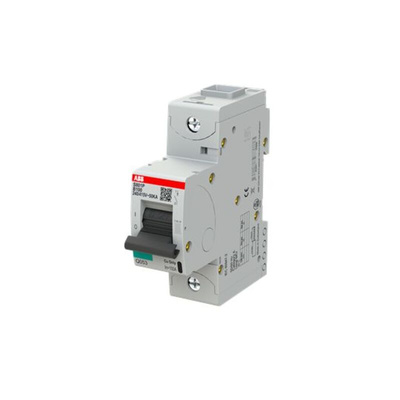

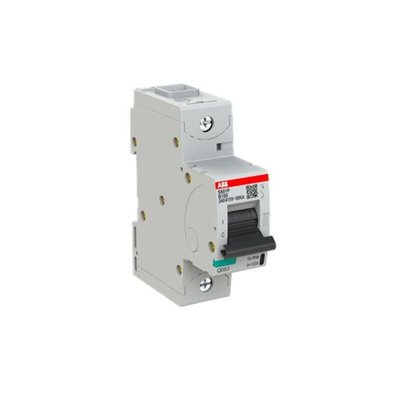

2CCG001215R0001, ABB High Performance S800N MCB, 1P, 100A Curve B, 400V AC, 36 kA Breaking Capacity

High-performance MCB S800N-B, 1-pin 36 kA

The S800 High performance MCB from ABB sets new standards thanks to its high rated current range and breaking capacities, good selectivity and back-up protection, an ideal solution for system protection and maximum availability.The compact design, excellent current limitation, trip position indicator, change over terminal adapter with cage or ring terminals along with a wide range of accessories, guarantee a high level of flexibility and convenience. Type B characteristics offer short circuit response of 3-5 x normal rated current. Suitable for circuits with low current peaks such as boilers and electric heating.

DIN rail mounting
Operating temperature -25 → +60°C
Max. operating voltage 400 → 690 V ac 50 → 60 Hz
Width 27 mm

Standards

EN 60898-1, IEC 60947-2

Approvals

CCC

• Globally Certified
• IEC60947-2
• EN45545 for Fire & Smoke
• IEC61373 for Vibration & Shock

ABB System Pro M Single & Double Pole MCB's

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.

S800 The High Performance MCB Technical catalogue

Datasheet_2CCG001215R0001
