Microchip PIC32 MCU Starter Kit DM320001

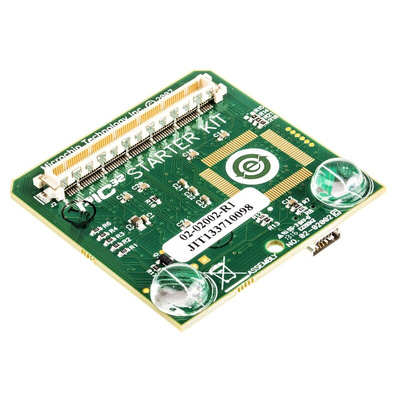

PIC32 Starter Kit

Microchips PIC32 starter kit is a brilliant and low-cost introduction to the PIC32 MCU (Microcontroller). The DM320001 is a great starter kit to get you to term with Microchips 32-bit family of microcontrollers. This kit provides you with everything you will need to program, debug, code and execute it on a high performing PIC32 MCU. On-board is also 3 buttons with 3 LEDs for status. Not to mention, the board contains a 8MHz crystal for precision microcontroller clocking.

Features and Benefits:

• Easily powered with a Mini-B USB


• Integrated programmer and debugger- Free MPLAB IDE X


• 80MHz PIC32 with 512K flash memory and 32K RAM, 4ch DMA


• 3 user switches that are active-low switches


• 3 Status LEDs – RD0 to RD2 connected via PORTD of the processor.


• Expansion connector allows you to connect a variety of Microchip expansion boards


• Example source code for projects and peripherals

Software:

Microchip provides you a free to use software. This software can be downloaded from the link below:
http://ww1.microchip.com/downloads/en/DeviceDoc/PIC32StarterKit_CDv1_1.zip

Whats In the box?

• PIC32 Starter kit board


• Mini-B USB cable

Supplied with

USB MINI-B cable

PIC32 Development Tools

PIC32 Starter Kit Users Guide

DM320001 - Datasheet
