0034704-50, Lapp Twisted Pair Data Cable, 0.75 mm², 4 Cores, 18 AWG, Screened, 50m, Grey Sheath, Кабель

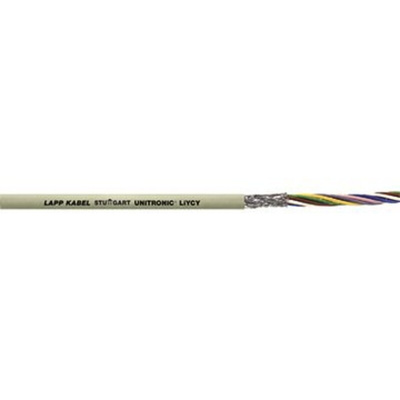

Unitronic LiYCY Cable

From Lapp, the Unitronic LiYCY series of data cables are DIN colour coded, and ideal for low frequency applications. These data or signal cables are used for computers and electronic control devices, and are screened to minimize electrical interference. The cable also features small dimensions and outer diameter, which makes it suitable for fixed installations where space saving is a concern.

The Unitronic LiYCY cable is flame retardant and suitable for use in dry or damp rooms.

Features and Benefits

• Core insulation with PVC base
• Cores stranded in layers
• DIN colour code
• Shield braid made from tinned wires
• Transparent outer sheath made from special PVC-based mixture
• Flame-retardant in accordance with VDE 0472, part 804, test type B (IEC 332.1)
• Operating temperature with occasional flexing: -5°C to +70°C
• Operating temperature with fixed installation: -40°C to +80°C

Applications

This CY multi-conductor cable is suitable for a variety of applications, such as;

• RS 232
• Process control
• Communications, signal & control
• Signal & broadcast

Accessories

Unitronic LiYCY cables should be used with accessories that mach its capabilities, and as such Lapp supplies a series of low-resistance screen cable glands.

• 839-5331 is an M16 Skintop EMC Cable Gland
• 839-5340 is an M20 Skintop EMC Cable Gland
• 839-5343 is an M25 Skintop EMC Cable Gland
• 839-5347 is an M32 Skintop EMC Cable Gland
• 839-5356 is an M40 Skintop EMC Cable Gland
• 839-5359 is an M50 Skintop EMC Cable Gland

Standards

DIN 47100, IEC 60332-1

LAPP Screened Data Cable, 18AWG, 50m Length - UNITRONIC LiYCY Series - 0034704-50

Use this flexible cable from LAPP for data transmission in commercial and industrial environments. As it has two unterminated ends, you can customise it with connectors that suit your needs. A length of 50m means you can cut it and use it across several jobs. It has four copper conductor cores that help ensure a stable and reliable connection. Its multicore construction is made up of colour-coded strands for easy identification during installation. Screening along the cable's length means you can be certain of a clear signal.

Features & Benefits

• Durable PVC outer sheath for abrasion and impact resistance
• Wide operating temperature of -40°C to +80°C for versatile industrial and commercial use
• Tinned copper braid screen for protection from electromagnetic interference
• Low conductor-to-conductor capacitance of 120nF/km for high integrity signals

Applications

• RS 232 serial devices
• Control and signalling equipment
• Instrumentation technology

What's the difference between CY and YY cables?

The difference between CY and YY cables is that CY cables are shielded while YY cables are not. This shielding is also known as screening and means you can rest assured a CY cable like this one is a reliable choice for interference-free data transmission.

LAPP Industrial Cable

IBS cables for industrial communications and field bus in sensors / actuators.

• Peak working voltage 250V (not for power purposes)
• Test Voltage 1500V
• Temperature range -40°C to +80°C
