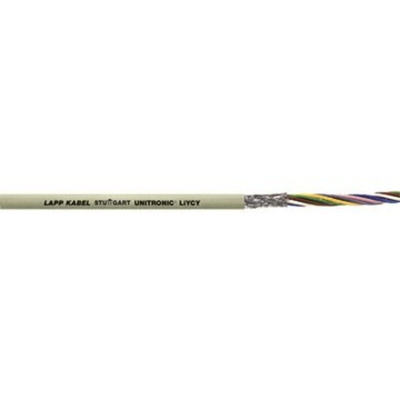

0034702-100, Lapp UNITRONIC LiYCY Control Cable, 2 Cores, 0.75 mm², LiYCY, Screened, 100m, Grey PVC Sheath, 18 AWG, Кабель

LAPP Control Cable, 500V AC Voltage Rating, 6mm Outer Diameter - UNITRONIC LiYCY Series - 0034702-100

Create safe signalling paths with this control cable from LAPP. The cord's tin-plated copper braid blocks out high EMI levels, cutting the risk of data loss. As its copper cores are highly conductive, you can rest assured the lead provides steady signals. Running the product through tight spaces is a cinch, thanks to its compact outer diameter of 6mm. Thanks to the cable's flame-resistant PVC jacket, it's a safe bet in demanding industrial environments.

Features & Benefits

• Non-wicking insulation prevents moisture from interfering with the conductors
• Colour-coded cores for hassle-free identification
• Protected against surge voltages up to 1.5kV to resist electrical faults

Applications

• Process automation
• Metalworking
• Fluid management

Can I install this cable around corners?

Yes. This cable has a minimum bending radius of six times its outer diameter in a fixed installation and 15 times its outer diameter in a flexible installation, so it fits around corners without a hitch.

LAPP Industrial Cable

IBS cables for industrial communications and field bus in sensors / actuators.

• Peak working voltage 250V (not for power purposes)
• Test Voltage 1500V
• Temperature range -40°C to +80°C
