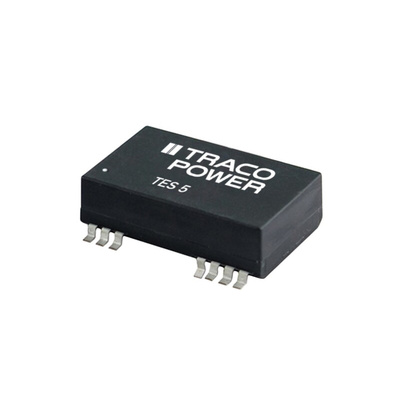

TES 5-2423, TRACOPOWER TES 5 DC-DC Converter, ±15V dc/ ±165mA Output, 18 → 36 V dc Input, 5W, Surface Mount, +85°C Max Temp, Преобразователь

Traco 5W SMD Single/Dual Output Regulated Isolated DC-DC Converter - TES 5 Series

5W single/dual output regulated isolated DC-DC high performance converter modules with a low profile SMD package. These isolated DC-DC high performance converter modules have a high efficiency enabling an operating temperature of up to 71°C at full load and a built in EMI filter to EN 55022 class A and FCC level A. Typical applications for these isolated DC-DC converters include battery powered equipment, instrumentation, communication systems and industrial controls.

Low profile SMD package
1.5kV input / output isolation
Wide 2:1 input
Regulated outputs
High accuracy of pin co-planarity
Built-in filter meets EN 55022, Class A and FCC, Level A without external components
Remote On/Off
Short circuit protection
UL94V-0 package material
Qualified for lead-free reflow solder process according IPC/JEDEC J-STD-020C, peak temperature 245°C (for 20 sec. max.)

Note

De-rating 3.5% per °C above 70°C.
MTBF to MIL-HDBK-217F (25°C).

Standards

EN 60950-1, UL 60950-1, IEC 60950-1

Approvals

CSA
