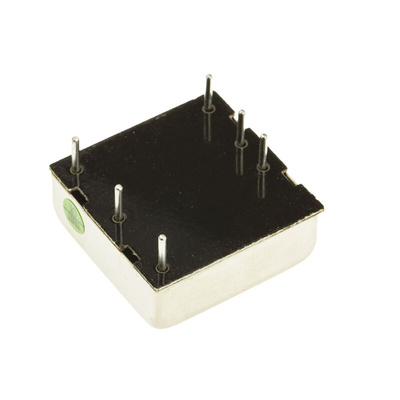

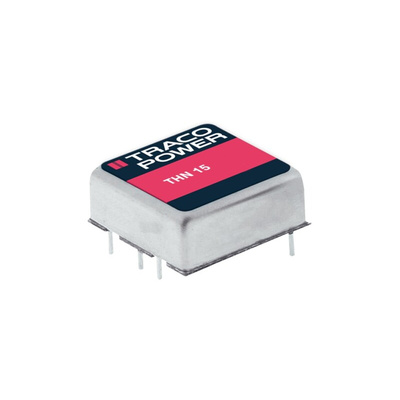

THN 15-1211, TRACOPOWER THN 15 DC-DC Converter, 5V dc/ 3A Output, 9 → 18 V dc Input, 15W, Through Hole, +85°C Max Temp -40°C, Преобразователь

Traco 15W Single Output Regulated Isolated DC-DC Converter - THN15 Series

15W single output regulated isolated high performance DC-DC converter modules with high power density, compact design and a wide input voltage range. These high performance DC-DC converter modules have a high efficiency enabling an operating temperature range of -40°c to +85°C (with derating). Typical applications for these DC-DC converter modules include mobile equipment, instrumentation, distributed power architectures in communication and industrial electronics.

High power density, ultra-miniature 25.4x25.4x9.9mm package
Wide 2:1 input voltage range
Regulated outputs
Adjustable output voltage by using external resistors
1.5kV input / output isolation
High efficiency up to 88%
Low ripple and noise
Built-in filter meets EN 55022, Class A and FCC, Level A with external capacitor
Remote On/Off
Over-voltage, over-load and short circuit protection
Shielded metal case with insulated baseplate
Industry standard pin-out

Note

Derating 3% per °C above 70°C.
MTBF to MIL-HDBK-217F (25°C).
For suitable heatsink see stock number 745-1247
Suitable common mode chokes:
THN 15-12xx : see stock number 745-1196
THN 15-24xx and THN 15-48xx see stock number 745-1187

Standards

EN 60950-1, UL 60950-1, IEC 60950-1

Approvals

CSA
