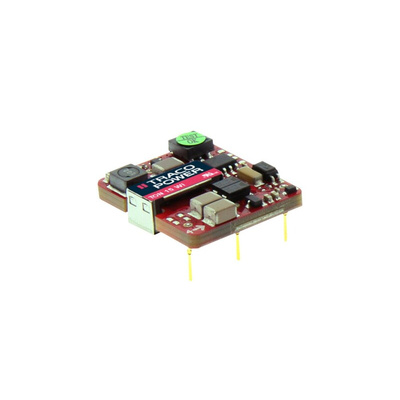

TON 15-2411WI, TRACOPOWER TON 15WI DC-DC Converter, 5V dc/ 3A Output, 9 → 36 V dc Input, 15W, Through Hole, +85°C Max Temp, Преобразователь

Traco Power DC-DC Converter, 2.25kV DC Isolation, 87% Efficiency - TON 15WI Series - TON 15-2411WI

Pick this DC-DC converter from Traco Power and make energising battery-driven equipment a piece of cake. It steps down voltages from a wide range of 9 to 36V DC and delivers a precisely regulated load of 5V DC. You can tweak this by ±10% thanks to the trimming function. Built-in I/O capacitors limit electrical disturbance on both inputs and outputs, so you can expect minimal impact from EMI without any external filtering. You also get close control over input and outputs as tight voltage regulation keeps them within 0.2% of your set value.

Features & Benefits

• Resists vibration and thermal shock (per MIL-STD-810F), so it's a safe bet in harsh settings
• Mean time between failures of over 2.4 million hours (per MIL-HDBK-217F) assures you it's built to last
• Isolation up to 2.25kV DC means it protects you and your equipment from significant voltage surges
• 87% efficiency, so it wastes very little energy in the form of heat and doesn't need a heatsink or fan

Applications

• Distributed power systems
• Instrumentation devices
• Factory automation

What electrical protections does this converter come with?

This product comes with overvoltage, overload and continuous short-circuit shielding with automatic recovery, giving you comprehensive cover for common current and voltage issues.
