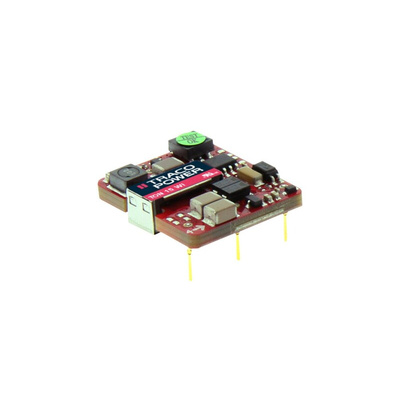

TON 15-2412WI, TRACOPOWER TON 15WI DC-DC Converter, 12V dc/ 1.3A Output, 9 → 36 V dc Input, 15W, Through Hole, +85°C Max Temp, Преобразователь

Traco 15W Open Frame Single Output Regulated Isolated DC-DC Converter - TON15WI Series

15W open frame single output regulated isolated high performance DC-DC converters with compact design, wide input voltage range and built-in filters for output and input. Typical applications for these high performance DC-DC converters include distributed power systems, instrumentation and industrial electronics.

High power density, ultra-miniature 27.9x23.9x8.5mm package
Ultra-wide 4:1 input voltage range
Regulated outputs
Adjustable output voltage by using external resistors
2.25kV input / output isolation
High efficiency up to 88%
Low ripple and noise
Built-in filter meets EN 55022, Class A and FCC, Level A without external components
Remote On/Off
Over-voltage, over-load and short circuit protection
Open frame
Industry standard pin-out

Note

Derate above 60°C.
MTBF to MIL-HDBK-217F (25°C).
For suitable common mode choke (L1):
TON 15-24xx : see stock number 745-1196
TON 15-48xx : see stock number 745-1187

Standards

UL 60950-1, EN 60950-1, IEC 60950-1

Approvals

UL/cUL recognied, File E188913
