THN 15-2411, TRACOPOWER THN 15 DC-DC Converter, 5V dc/ 3A Output, 18 → 36 V dc Input, 15W, Through Hole, +85°C Max Temp -40°C, Преобразователь

Traco Power DC-DC Converter, Single Output, 1.6kV DC Isolation Voltage - THN 15 Series - THN 15-2411

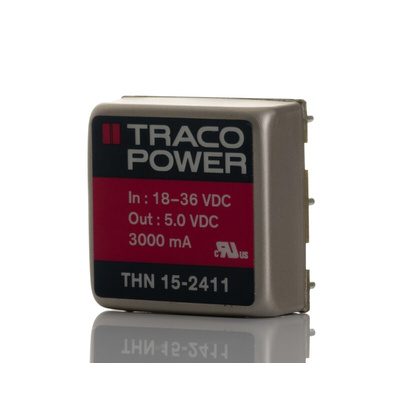

Take a voltage between 18 and 36V DC and step it down to a clean 5V DC / 3A output with this DC-DC convertor from Traco Power. Thanks to its state-of-the-art circuit design, it wastes minimal energy, delivering an impressive 88% efficiency. That circuitry is packed into a compact unit measuring just 25.4 (L) x 25.4 (W) x 9.9mm (D), saving valuable space on your PCB. The package is encapsulated to protect the circuit from environmental stresses and shielded to prevent interference with the precisely regulated output voltage.

Features & Benefits

• Operating temperature range between -40°C and +85°C makes it suitable for harsh industrial environments

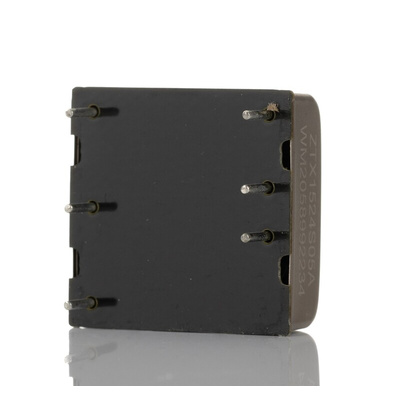

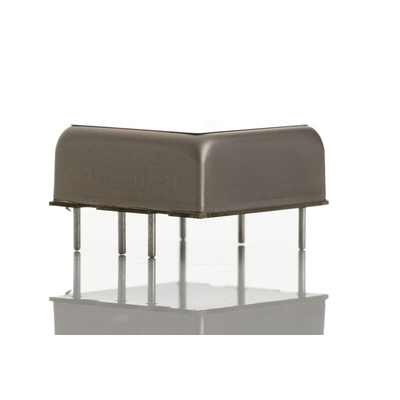

• Through-hole mounting forms a robust connection with your PCB
• Isolation voltage of 1.6kV DC protects your equipment from power surges

Applications

• Instrumentation
• Communications technology
• Mobile equipment

What's through-hole mounting?

With through-hole mounting, leads are inserted into holes drilled into a PCB. This technology predates surface-mounting but remains popular in applications where the product is subjected to high levels of environmental stress, as it forms a more reliable connection with the board.
