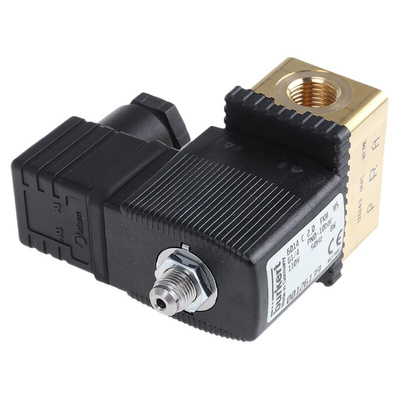

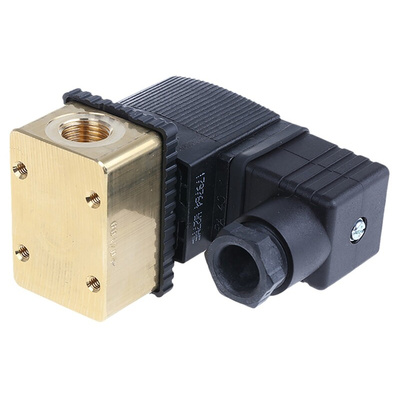

Burkert Solenoid Valve 126139, 3 port(s) , NC, 110 V ac, 1/4in, Клапан

Burkert Solenoid Valve

The Burkert 3-port 1/4in G female solenoid valve is a vibration-proof, bolted coil system. It has high-quality seal material FKM as standard. It has a banjo-threaded connection for direct mounting on pneumatic valves. The stopper and plunger guide tube are welded together to enhance pressure resistance and leak tightness. Its maximum opening and closing time ranging between 15 milliseconds and 20 milliseconds. This valve is suitable to use with water, neutral fluids air natural, gases, oil and fats (without additives).

Features and Benefits

Supply voltage is 110VAC
Flow factor (Kv) is 0.11m³/h
Two female ports and a 1/8in male vent port
Direct-acting and compact valve with diameter of DN 2.5
Coil can be changed easily with valve in place
Medium is only in contact with the valve internals and the body
Coil can be locked in four by 90° positions or move freely in between, as required
Maximum working pressure is 10bar
Power consumption is 8W
Operating temperature ranging between -10°C and 55°C

Certifications

IP65 rated

3/2-way small solenoid valve - Type 6014

Datasheet
